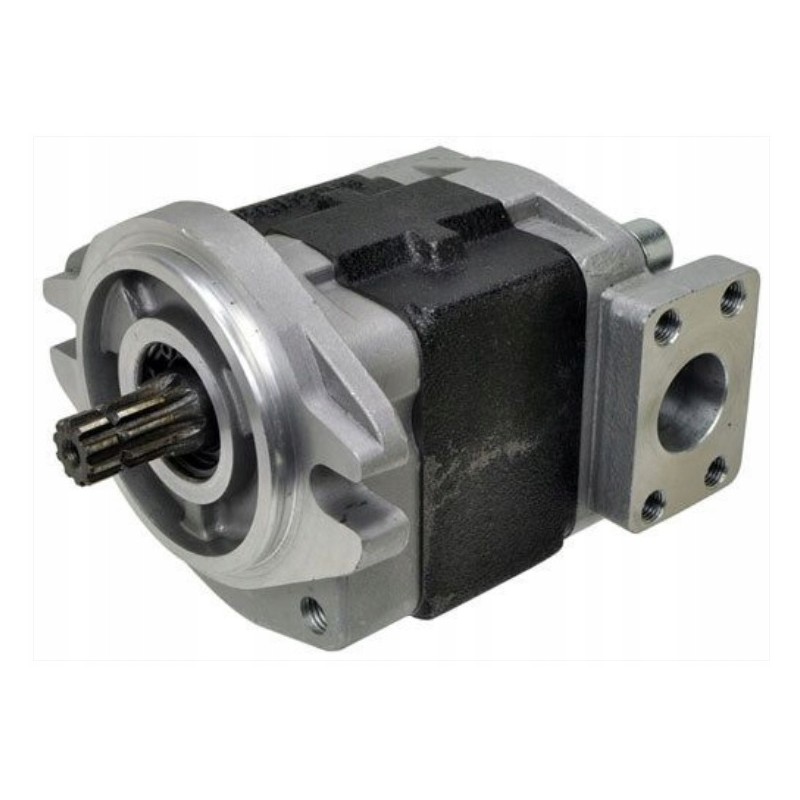

Hydraulic pump komatsu fd20 fd30 yanmar 4d94e 4d98e 37b 1kb 3040

HYDRAULIC PUMP FOR FORKLIFT

KOMATSU FD20 FD30 with Yanmar 4D94E 4D98E engine

Application:

FD30-12 forklift with 4D94E engine

FD30-14 forklift with 4D94E engine

FD20~30H-12 forklift with 4D9 engine 8E

FD20 forklift ~30H-14 with 4D98E engine

Forklift FD20/25-12 FD20-25-14 FD20-25-14-EC FD20H/25H-12 FD28/30-12 FD30-14-EC FG20/25-12 FG20-25 -14 FG20-25-14-EC FG20H/25H-12 FG20H-25H-14 FG20H-25H-14-EC FG28/30-12 FG30-14 FG30-14-EC FG30H-12 FG30H-14 FG30H-14-EC

Technical data

Pump type gear pump Number of elements 1

Flange type type B

Distance from the center of the flange mounting holes C1 (mm) 106.4

Total length of the pump L1 (mm) 165

Neck diameter D2 (mm) 82.5

Distance from flange to end L2 (mm) 36

Shaft diameter D3 (mm) 17

Number of shaft splines 10

Direction of rotation LEFT

Distance from the center of the C-CO1a mounting holes (mm) 26.4

Distance from the center of the C-CO2a mounting holes ( mm) 52.4

Distance from the center of the C-CO1b mounting holes (mm) 22.2

Distance from the center of the C-CO2b mounting holes (mm) 47.6

Housing material metal
