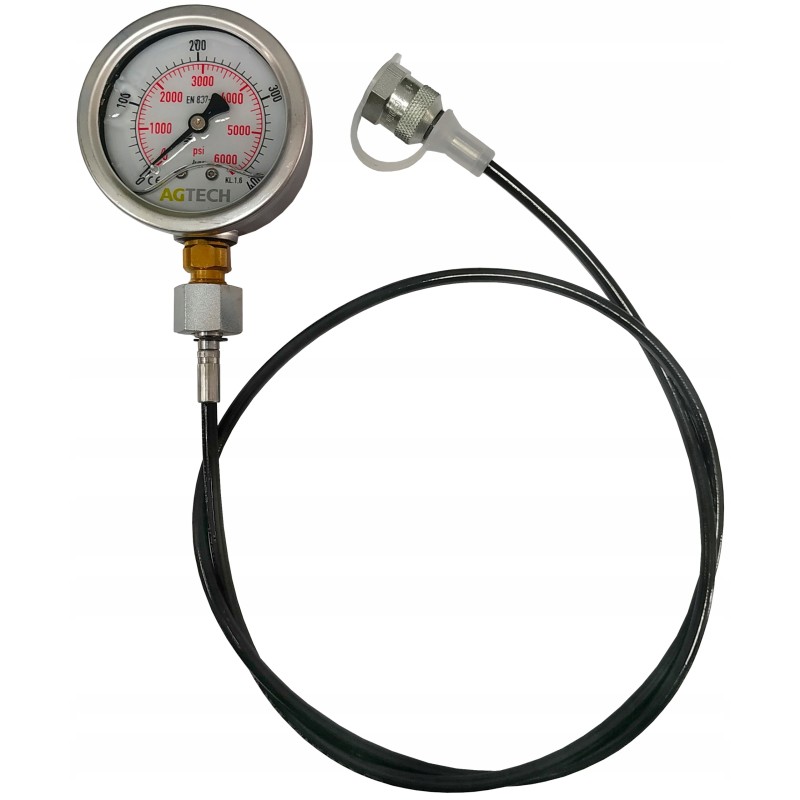

Power Hydraulic Pressure Diagnostic Set with Pressure Gauge 0-400bar[8036]Used to constantly control the pressure of the hydraulic system in tractors, combines, construction machines, etc. The glycerin pressure gauge is perfect for hydraulically powered machines and devices.
The pressure gauge allows you to measure the liquid pressure in the system closed hydraulic system.
The set includes: Hydraulic pressure gauge 0-400 BAR [0313]
Measuring line G1/4'' \ M16x2 \ L1000mm [1918]
Glycerin pressure gauge 63mm for measuring pressure: 0-400 bar, solidly made[0313 ]
The glycerin pressure gauge differs from standard pressure gauges by having an interior filled with glycerine, which protects and protects the pointer against vibrations and oscillations.
Glycerin also allows you to increase the level of measurement accuracy.
Technical data:
Pressure measurement range: 0-400 Bar
Outer diameter of the clock: 63mm
Connection port thread [BSP]: 1/4'
Operating temperature [°C]: -10 to +50
Accuracy class: 1.6
Material:
Steel housing, viewfinder glass
We also have sets on our other auctions with pressure gauge 0-250bar and the product code is: [8035]
