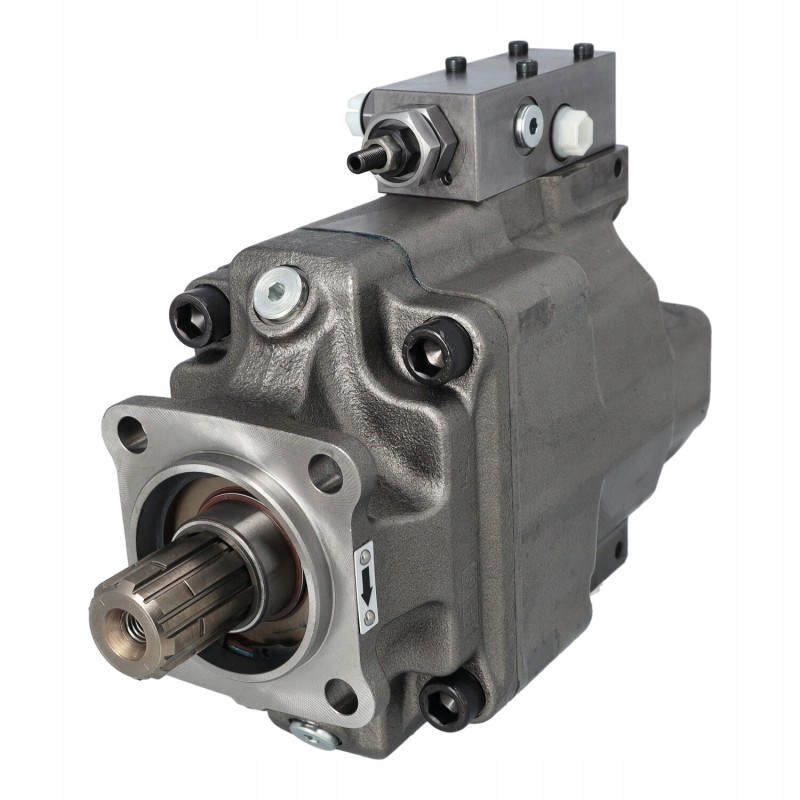

Voac-Parker VP1-095-R piston pump Voac-Parker VP1-095-RA-ZV-Z-000-350/25 piston pump for LS systems. (Unpainted pump)
Max. working pressure: 420 bar Discharge connection: G 1' BSP Suction connection: Suction port (available separately) LS connection: G 1/4' BSP Leak connection: G 1/4' BSP Pressure gauge connection: G 1/4' BSP Shaft: DIN 5462/ISO 14 Flange: ISO - 4 screws (bolt spacing 80mm)
Black painted pump code: 378 6003, 3786003
Working volume: 95 cm3/rev
Max. operating pressure (continuous): 400 bar
Manufacturer: Parker
Direction of rotation: Right
Pump type: Variable displacement piston
Comparison code: 378 6000, 378 6003, 3786003
Centering diameter: 80 mm
Shaft type: Splined 8x32x36
