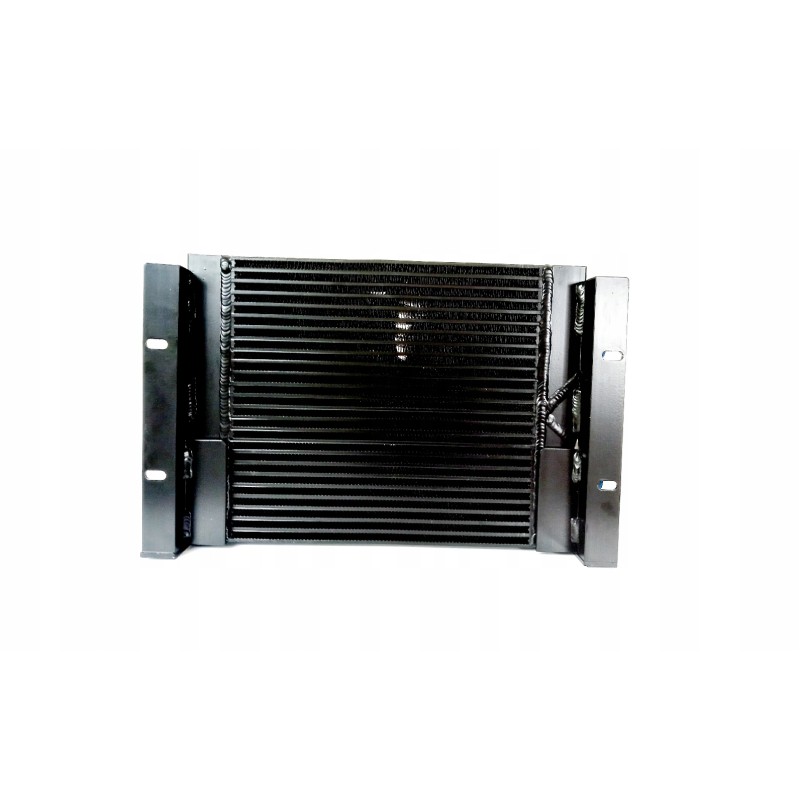

Hydraulic oil cooler 100l min DC 12v

Hydraulic oil cooler 100 L/min. 12V Hydraulic oil cooler, designed for mobile hydraulics where high performance and efficiency are required, and the physical dimensions must be as small as possible to ensure easy installation.

Aluminum alloy construction ensures low product weight.

Equipped with a bypass discharge circuit to prevent too much high impulse pressure, which could damage the radiator when the system is started.

The radiator also has a thermostat. After exceeding a given temperature, the thermostat opens the valve under the influence of heat, which allows the cooled oil to flow into the radiator. When the temperature drops to a low value, the thermostat closes again.

Maximum flow: 100 l/min

Maximum pressure in continuous operation: 20 bar

Fan power: 60 W

Fan voltage: DC12V

Suitable for oil temperatures from 15 ℃ - 180 ℃, suitable ambient temperature from -35 ℃ - 90 ℃.

The product is applicable for universal use: trucks, orchard machines, stationary machines, HDS hydraulic cranes, slurry tankers, forestry machines.
