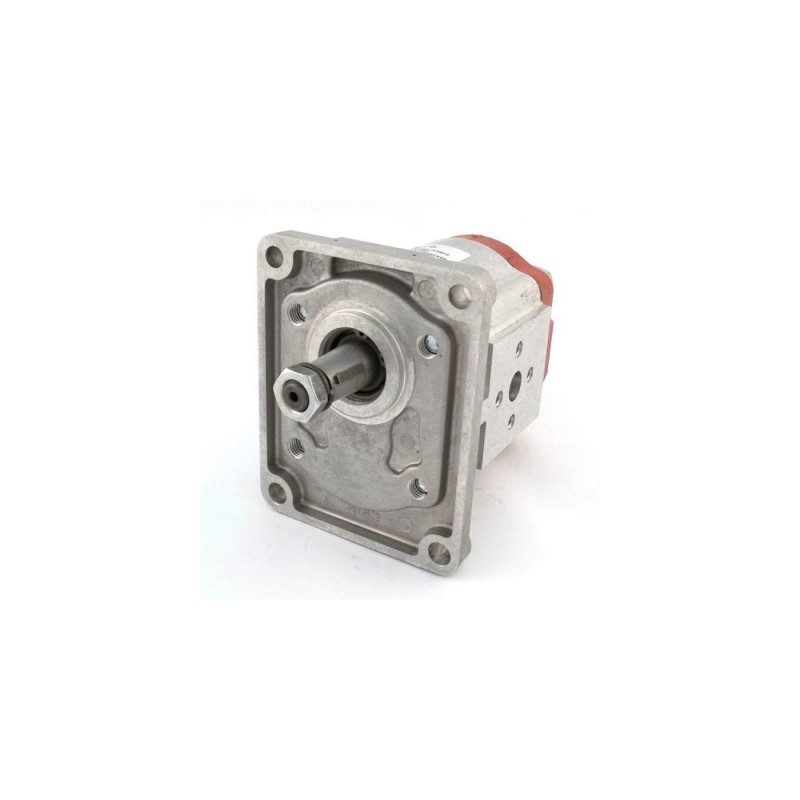

Hydraulic gear pump salami 2 5pb32d p38p2

Hydraulic gear pump Salami 2.5PB32D-P38P2[0196]

Displacements cmc / rev-cu.in.rev 32.4 - 1.97

Working pressure P1 (bar-psi): 230 - 3300

Intermittent pressure P2 (bar-psi): 250 - 3600

Peak pressure at P2 (bar-psi): 260 - 3750

Minimum speed at P1 (rpm): 500

Maximum speed at P1 (rpm): 3000

Inlet port: M10

Outlet port: M8

Shaft diameter: 1 :8

613870062

Features and advantages:Gear pumps made of aluminum alloy with cast iron body and rear covers.

High volumetric efficiency thanks to innovative design and accurate control of machining tolerances.

Axial compensation is achieved by movable bushings that enable high efficiency volumetric capacity over the entire pressure range.

DU bearing provides high pressure.

Two-piece integral one-piece gear and shaft.

Double shaft seals.

Nitrile seals as standard and high temperature Viton seals.

Available with flanges, shafts and ports for major European standards , German and SAE.

Available with multiple rear covers with built-in valves.

Extremely compact, reusable 2.5PB / 2.5PB pump design.

Multistage pump mounting also available in combination with 2PE and 1.5PB types.

All pumps are tested after assembly and run-in to ensure the high standard required by Salami engineers.
