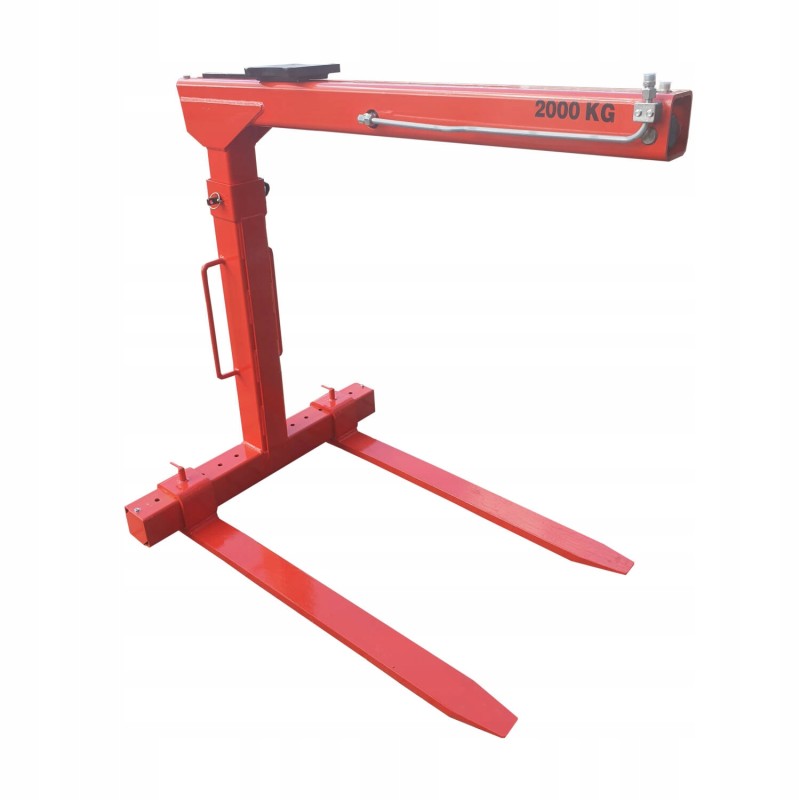

Hydraulic fork suspension, leveled extension

Hydraulic leveled fork sling extendable Hydraulic leveled fork sling extended 2000 kg

It is used to lift pallets with hydraulic balancing of the center of gravity via a hydraulic cylinder The sling is adjustable in height and width of the forks.

The sling meets the requirements of the PN-EN 13155:2003+A1:2005 standard and the Machinery Directive 2006/42/EC

Load capacity (DOR/WLL): 2000 kg

Working length of forks: 1150 mm

Working width: 900/360 mm

Working height : 1720/1140 mm

Fork width: 100 mm

Fork height: 30 mm

Weight : 185 kg
