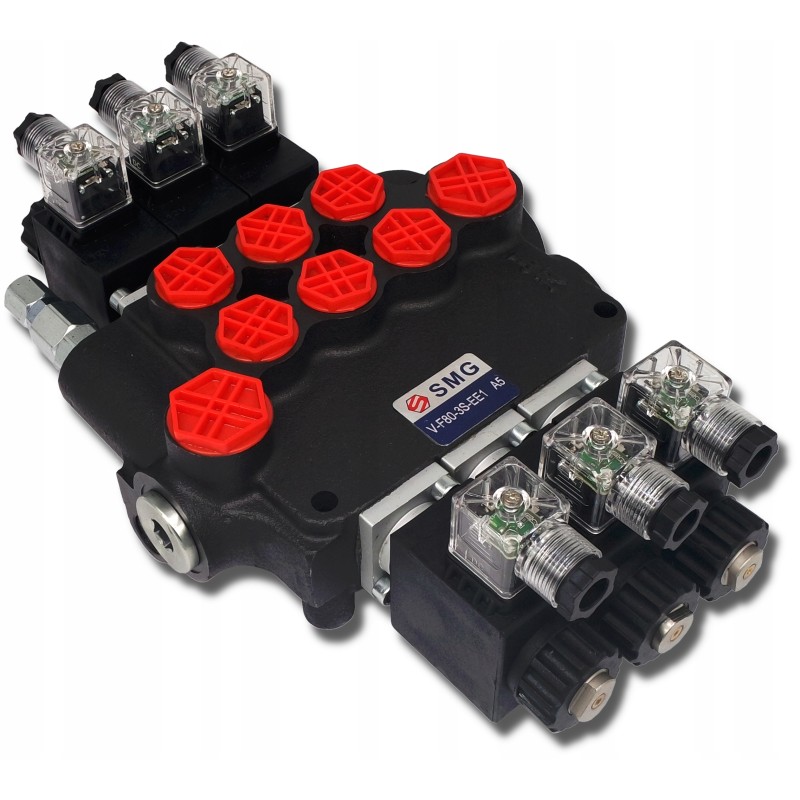

Hydraulic electric distributor 3 sec 80l 12v

3-section electric 12V hydraulic distributor with an oil flow of 80L/min SKRAW MET CODE: [3260] Manufacturer: SM-G (SKRAW MET GROUP) Universal distributor, used in various types of machines such as: Cyclops, Tury, Loaders, Plows, Forklifts and derivatives.

The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines , loaders, excavators, sweepers, industrial machines and others.

Electric coils with plugs are included with the distributor. The distributor has a safety valve. Nominal voltage: 12 V

oil flow: 0 - 80 l/min

recommended oil filtration at : 10 - 15 µ

oil temperature: from -20°C to +80°C

ambient temperature: from -40°C to +60°C

version: steel cast valve

Pressure range: Maximum supply pressure: 250Bar

Maximum return pressure: 50 Bar

Maximum pressure on sections: 300 Bar

Overflow valve: Factory set to 180 Bar

Possibility of self-adjustment, full turn change by 30 Bar.

Connection: Power supply (P) BSP 3/4''

Return ( T) BSP 3/4''

Outlet for BSP 1/2'' sections

Oil type: Hydraulic oil based on mineral oil

Control Three-position slider (1 - 0 - 2) on a spring returns to the neutral position by itself (after cutting off the power supply )

Neutral position 0 (power supply to the coils CUT OFF), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (power supply to the first coil), the actuator piston rod extends.

Working position 2 (power supply to the second coil) actuator piston rod hides.

Inputs/outputs:P1 / P2 - oil supplyT1 / T2 - oil returnA1-A2 / B1-B2 - outputs to actuatorsN - pressure output (for transmitting pressure to distributors connected in series - requires a pressure sleeve) Illustrative photo! The number of outputs for the actuator (A and B) depends on the number of sections in the distributor. Electrical plugs are connected to the distributor coils using three pins. All additional elements, such as coil plugs, joysticks or control panels, can be purchased on our other auctions. .Technical drawing and diagram of the distributor
