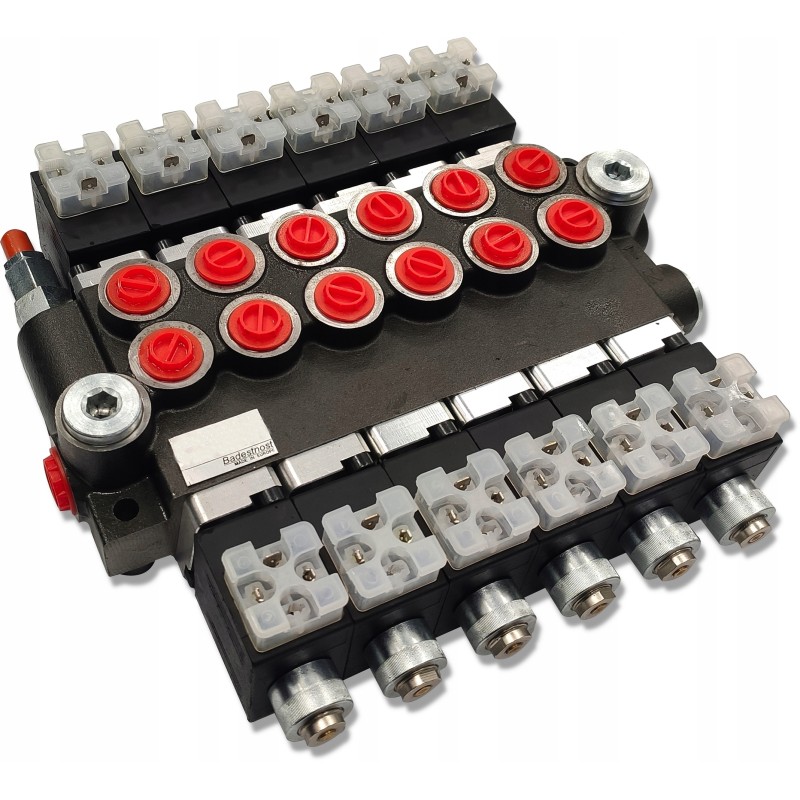

Hydraulic distributor 6 sec 50l electric 24v

6-section hydraulic distributor, 24V electric, with an oil flow of 50L/min. SKRAW-MET CODE: [2654] Universal distributor, used in various types of machines such as: Cyklops, Tury, Loaders, Plows, Forklifts and similar machines. The distributor has a safety valve.

The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders , construction machines, loaders, excavators, sweepers, industrial machines and others. Bulgarian product - the highest quality. The distributor has a safety valve. nominal voltage: 24V

power: 37 W

oil flow: 0 - 50 l/min recommended oil filtration level: 10 - 15 µ

internal leakage: approx. 18 cm³ /min at 100 bar oil temperature: from -20°C to +80°C

ambient temperature: from -40°C to +60°C

version: cast steel valve Pressure range: Maximum supply pressure: 250Bar Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve: Factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar.

Connection: Power supply (P) BSP 1/2''

Return (T) BSP 1/2''

Output to BSP sections 3/8''

Oil type: Mineral oil-based hydraulic oil

Control 6x Three-position slider (1 - 0 - 2) on a spring returns to the neutral position on its own (after cutting off the power supply)

Neutral position 0 (power supply to the coils CUT OFF) the actuator piston rod is standing - the oil flows on the overflow.

Working position 1 (power supply to the first coil), the actuator piston rod extends.

Working position 2 (power supply to the second coil), the actuator piston rod retracts.

Inputs/outputs: P1 / P2 - oil supply T1 / T2 - return oilA1-A2 / B1-B2 - outputs for actuatorsN - pressure output (for transmitting pressure to distributors connected in series - requires a pressure sleeve)ZP - overflow valveAll additional elements, i.e. coil plugs, joysticks or control panels, can be purchased on our other auctions.
