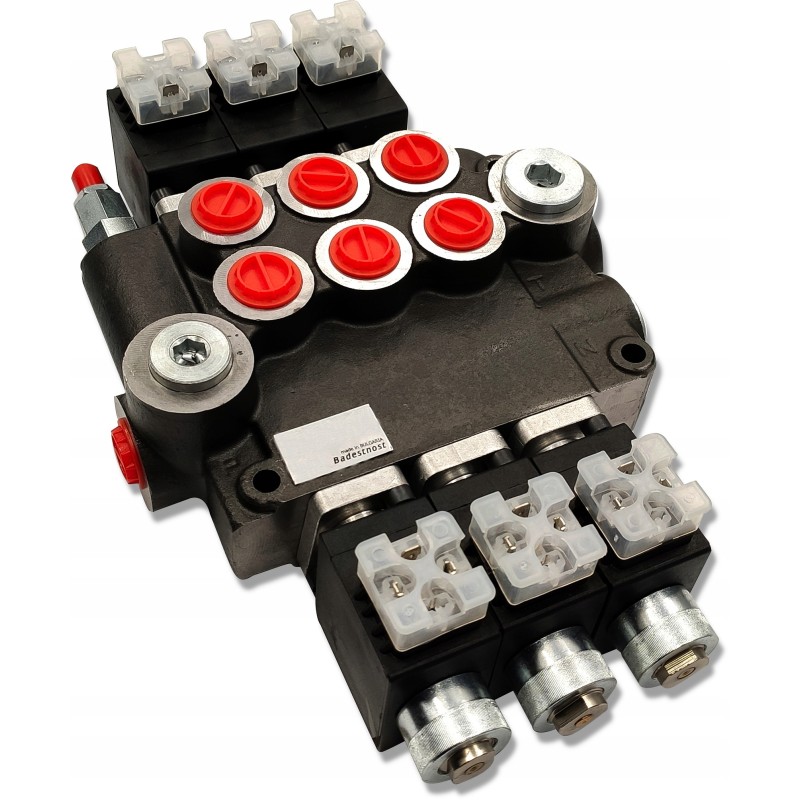

Hydraulic distributor 3 sec 80l electric 12v

3-section electric hydraulic distributor 12V with an oil flow of 80L/min SKRAW-MET CODE: [2643] Universal distributor, used in various types of machines such as: Cyklops, Tury, Loaders, Plows, Forklifts and similar machines. The distributor has a safety valve.

The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders , construction machines, loaders, excavators, sweepers, industrial machines and others.

Bulgarian product - the highest quality. The distributor has a safety valve. nominal voltage: 12V

power: 37 W

oil flow: 0 - 80 l/min

recommended oil filtration at the level: 10 - 15 µ

internal leakage: approx. 18 cm³ /min at 120 bar

oil temperature: from -20°C to +80°C

ambient temperature: from -40°C to +60°C

version : cast steel valve

Pressure range: Maximum supply pressure: 250 Bar

Maximum return pressure: 50 Bar

Maximum section pressure: 300 Bar

Overflow valve: Factory set to 180 Bar

Possibility of self-adjustment, full turn change by 30 Bar.

Connection: Supply (P) BSP 1/2''

Return (T) BSP 3/4''

Outlet to sections BSP 1/2''

Oil type: Hydraulic oil based on mineral oil

Control 3x Three-position slider (1 - 0 - 2) on the spring it returns to the neutral position on its own (after cutting off the power supply)

Neutral position 0 (current supply to the coils CUT OFF), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (current supply to the first coil) the actuator piston rod extends.

Working position 2 (power supply to the second coil), the actuator piston rod retracts.

Inputs/outputs:P1 / P2 - oil supplyT1 / T2 - oil returnA1-A2 / B1-B2 - outputs to the actuatorsN - pressure output (to transferring pressure to series-connected distributors - requires a pressure sleeve) ZP - overflow valve All additional elements, such as coil plugs, joysticks or control panels, can be purchased on our other auctions.
