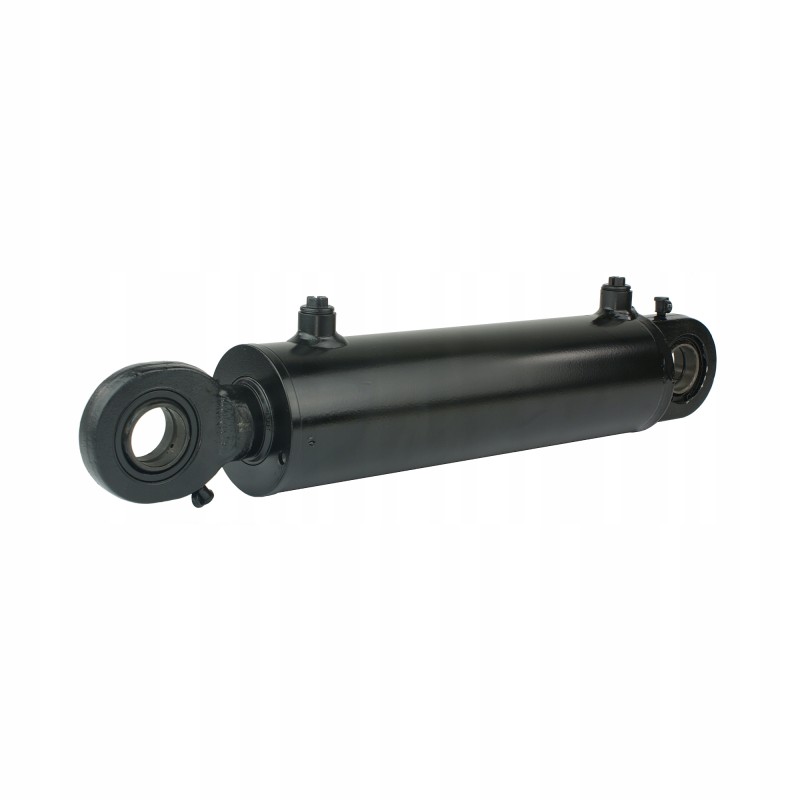

Polish cylinder cylinder for plow, stroke 240mm l 460

DOUBLE-ACTING HYDRAULIC CYLINDER, ORIGINAL FOR A REVERSIBLE PLOW. Production:

Original product of the Hydrolider brand, manufacturer's symbol: 1.31.60.010, CJ2F 80/45/240 U35

Application:

Special double-acting hydraulic cylinder for a reversible plow. Designed for small and large plows, up to 16 furrows (8 furrows on one side). The actuator cooperates with a special valve to automate rotation. The valve is available in our offer.

Moreover, if the dimensions and stroke are appropriate, the actuator can be used for any machine or hydraulic system.

General information:

Head mounting on the pipe side: welded

Head mounting on the rod side: welded

Stuffing box type (closing cap): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe): 92 mm

Inner diameter of the piston (pipe): 80 mm

Diameter of the piston rod (rod): 45 mm

Diameter of holes for pins: 35mm

Stroke (working movement) of the piston rod: 240 mm

Length in the rest state measured in the axes of holes: 460 mm

Internal threads for connections: M16x1.5

Operating parameters:

Maximum allowable operating pressure: 240 bar

Permissible temperature ambient: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
