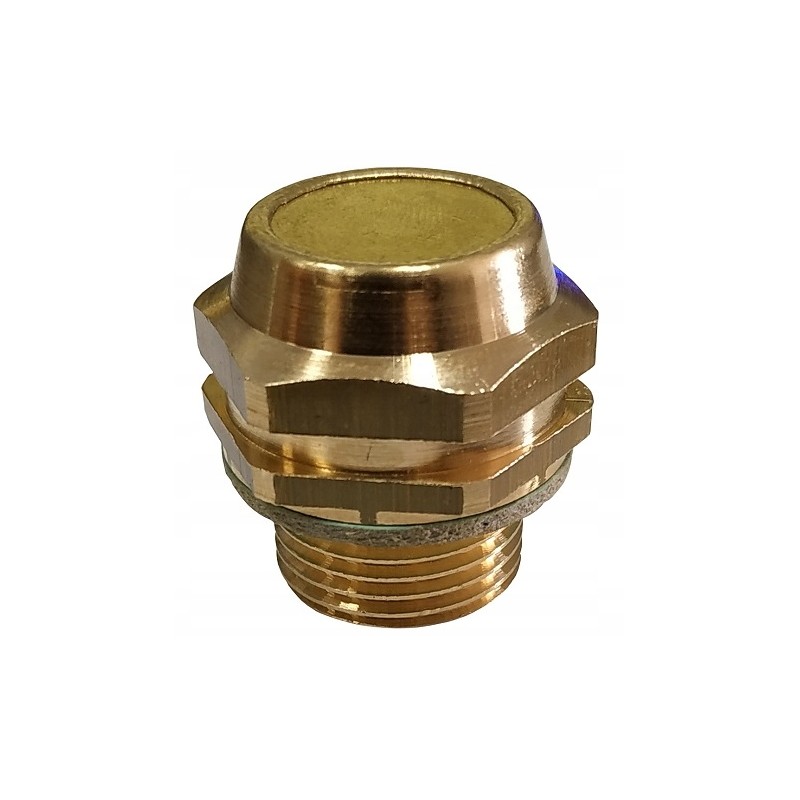

Hydraulic cylinder breather 3 8

MEMBRANE AIR AIR VENT WITH G3/8' THREAD [1821]

The air bleeder is used to convert a double-acting cylinder into a single-acting cylinder.

To convert a double-acting cylinder into a single-acting cylinder, simply select a bleeder with an appropriate thread and screw it into one of the two hydraulic outputs on the cylinder.

Z usually it is the upper exit, from the piston rod side.

The actuator converted in this way will work as a single-sided one.

Air circulation holes are placed on the sides. Technical Specifications: Type: ASEP

Built-in bronze filter: 200 microns

Thread [BSP]: 3/8'

CH [mm]: 22

h1 [mm]: 15

h2 [mm]: 10

Material: Sintered bronze

DEPENDING ON THE DELIVERY, ONE OF TWO TYPES OF AIR VENTS IS SENT: (BOTH TYPES DO NOT DIFFER FROM EACH OTHER IN THE METHOD OF OPERATION - BOTH ARE HIGH QUALITY)
