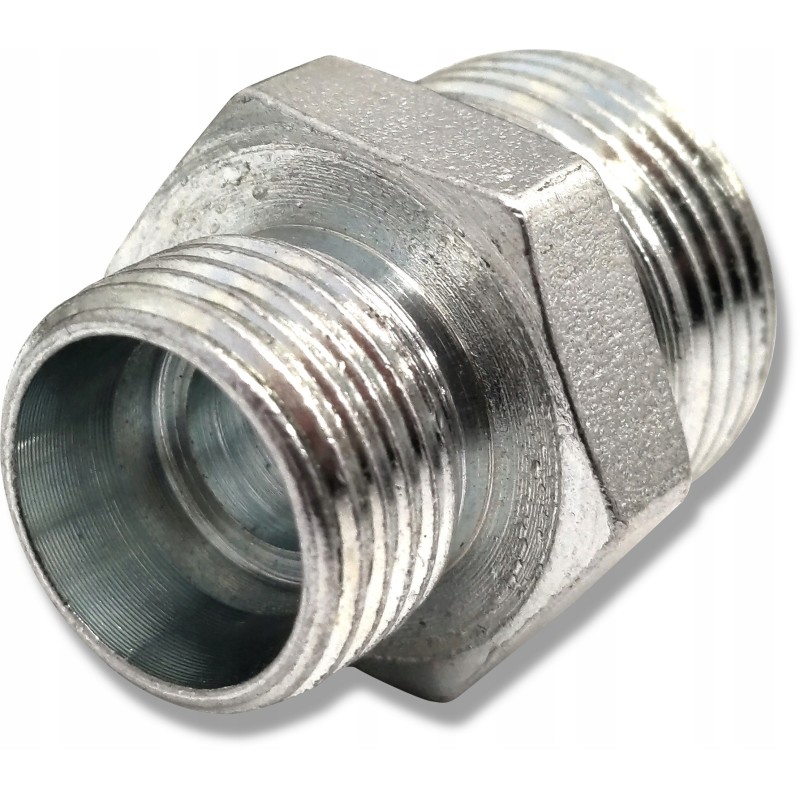

Hydraulic connector BB nipple m16x1 5 m18x1 5

Straight hydraulic connector - nipple M16x1.5 - M18x1.5 SKRAW MET CODE: [2973] Manufacturer: SM-G (SKRAW MET GROUP) Connector in a standardized light version with a self-sealing cone when tightened. Due to the lack of a rubber ED seal and space for The connector seal is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: The connector is designed to connect two cables or to connect with other connectors with the same sealing cone.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Total length: 28 mm

Wrench: 19 mm

Nominal bore diameter: 8 mm

Thread G1: external metric M16x1.5

Thread G2: external metric M18x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Connector version: light

Material: weldable, galvanized, corrosion-resistant steel
