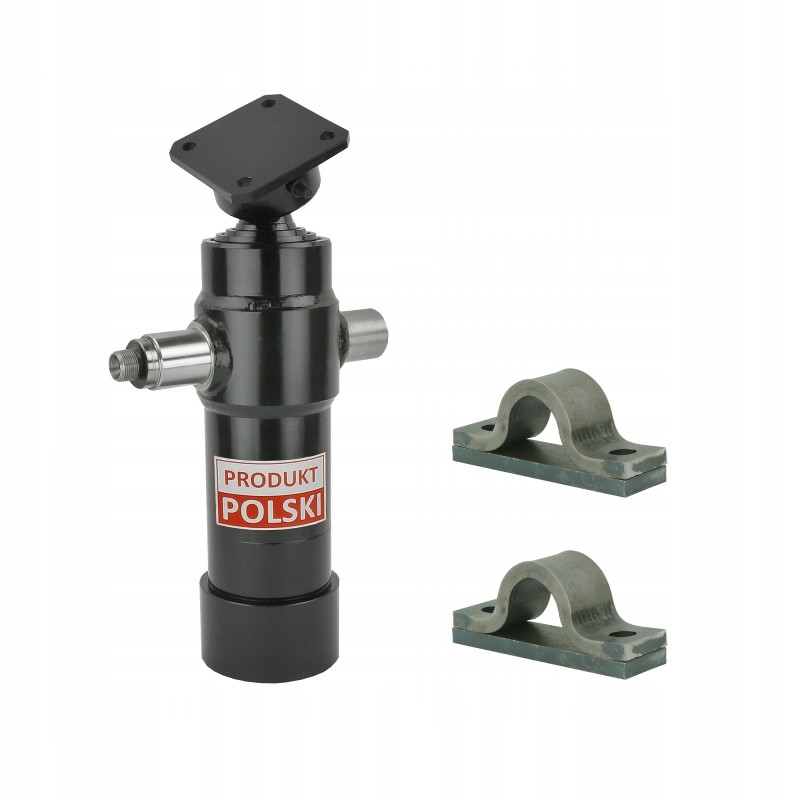

Hydraulic trailer cylinder 700mm 5t on the rear attachment

TELESCOPIC CYLINDER WITH A 700 mm stroke INCLUDED WITH A SOCKET AND PIN FIXING Production:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.80.016.2, CT 75/3/700

Application:

Widely used in hydraulic systems in agriculture, horticulture and forestry , construction and the broadly understood industry.

The compact structure and low profile make the actuator ideal for low-bed vehicles or low-set trailer load boxes.

General information:

Number of sections (piston rods): 3

Maximum speed of the piston rods 0.5m/ s

Oil demand: 2.5 liters

Maximum operating pressure: 16 MPa

Sensitivity threshold (starting pressure): 0.5 MPa

Operating parameters:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: - 15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider cylinders, which are the only ones that guarantee reliability for years.

Technical data of the mounting:

Material: hardened weldable steel

Can be mounted with screws or welding.

Worth knowing:

Hydraulic telescopic cylinders they consist of several cylinders of increasingly smaller diameters, assembled one inside the other and extending out one by one. In this way, it is possible to obtain a large stroke with a short length of the folded actuator. In single-acting hydraulic telescopic actuators, pressurized oil acts on one side, causing the individual actuator members to extend. The return of the telescope is carried out under the influence of an external force (usually under the influence of the weight of the trailer unloading box).

The oil inflow and outflow takes place through the same conduit, the direction of oil flow is controlled by the machine operator through the distribution valve (lever).

The recommended angle of inclination of the box during unloading should be between 40 and 45 degrees. The mounting location of the actuator should be halfway along the length of the load box. Below are useful tables and diagrams for selecting the appropriate actuator, knowing the length of the load box:

Data useful when selecting an actuator for the load box:

max weight of bulk cargo + weight of box (12MPa): 4 T

max weight of bulk cargo + weight of box (16MPa) : 5 T

maximum distance from the actuator to the hinges (D): 1000 mm

length of the box when tipping to the rear (DS): 2000 mm

possibility of extending the box by extending it beyond the hinges (G)

Actuator extension force on individual sections 12/16 MPa (T ):

first section diameter 75mm - 5.4T / 7.2T

second section diameter 60mm - 3.5T / 4.6T

third section diameter 45mm - 1.9T / 2.6T
