Hydra rear tipping cylinder d35, stroke 520 mm

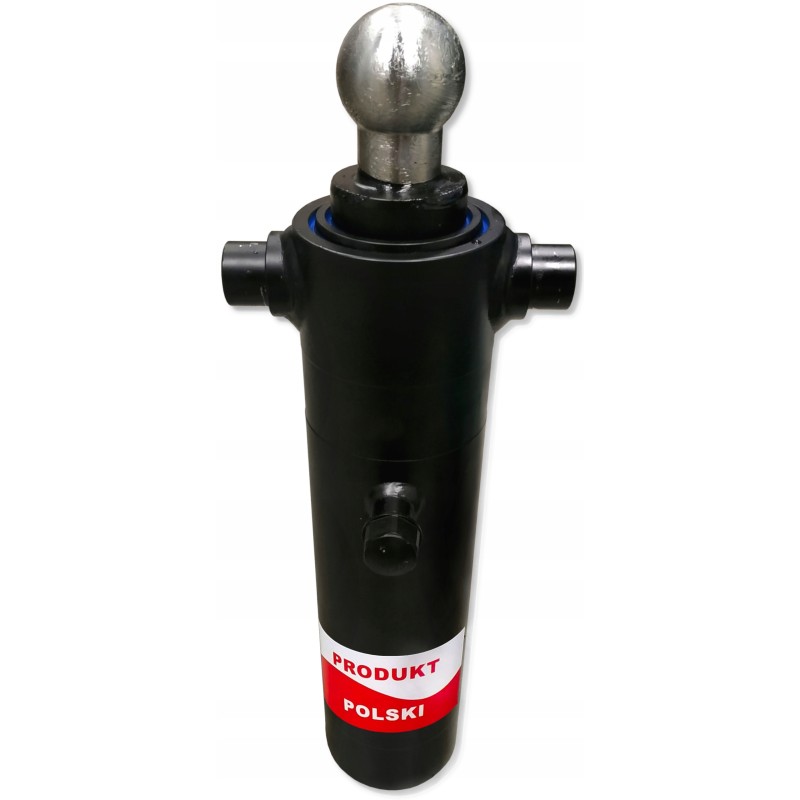

Hydraulic Cylinder Polish CYLINDER TRAILER PISTON D-35SKRAW-MET CODE: [2623]Manufacturer: Skraw-MetSymbol: ST-2.520-00 D-35SKRAW-MET is a long-time leader in the production of actuators. Thanks to its experience, it uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this cylinder.

___________________________

Single-acting hydraulic cylinder. The hydraulic cylinder works perfectly in hydraulically powered machines and devices.

The main application of this actuator is the D-35 trailer, where two such actuators enable side tipping.

It is also used for renovations and production of trailers with similar characteristics (e.g. D-47).

Maybe be used in agriculture, horticulture, forestry and construction.

A word about telescopes Telescopic actuators consist of several successively extending segments - chrome-plated cylindrical sleeves. This allows for a large actuator extension compared to its total length when folded.

Telescopes are single-acting actuators. The extension begins by supplying hydraulic oil under pressure. The return of the actuator is caused by the action of the distributor, which releases the pressure from the system - the fall occurs by gravity, most often under the influence of the weight of the load box.

To prevent damage to the sleeve protection caused by excessive pressure during the maximum extension of the actuator, a protection device (rope, hydraulic or electric shut-off valve) should be used.

A well-selected actuator located in the center of the body ensures an angle of inclination of the load box between 40 and 45 degrees.

Depending on the type of goods transported, you can select this angle yourself - the table below may be helpful:

TELESCOPIC ACTUATOR SELECTION TABLE (TABLE OF TRAVEL REQUIRED TO TILT THE TRAILER TO THE DESIRED ANGLE°)

DP - distance between the cylinder mounting and the trailer hinges in [mm ] (DP = 1/2 S )

a° - trailer body inclination angle

C - actuator stroke in mm

S = DP*2

___

T - Pushing force

BAR - Pressure

Technical specifications: Number of stages: two

Length of the folded cylinder 437 mm,

Piston stroke 520 mm,

Total length of the cylinder after unfolding 957 mm,

Diameter of the first piston rod 60 mm,

Diameter of the second piston rod 75 mm,

Outer diameter of the cylinder 95 mm,

Hydraulic connection M22*1.5

Maximum speed piston rod: 0.5 m/s

Starting pressure: 0.5 MPa

Maximum working pressure: 160bar

Oil requirement: 2L

Permissible ambient temperature from -40℃ to +60℃

Permissible oil temperature from -15℃ to +80 ℃

Gland type: threaded screwed into the pipe

Piston rod: chrome plated

Fluid type: mineral oil-based hydraulic oil
