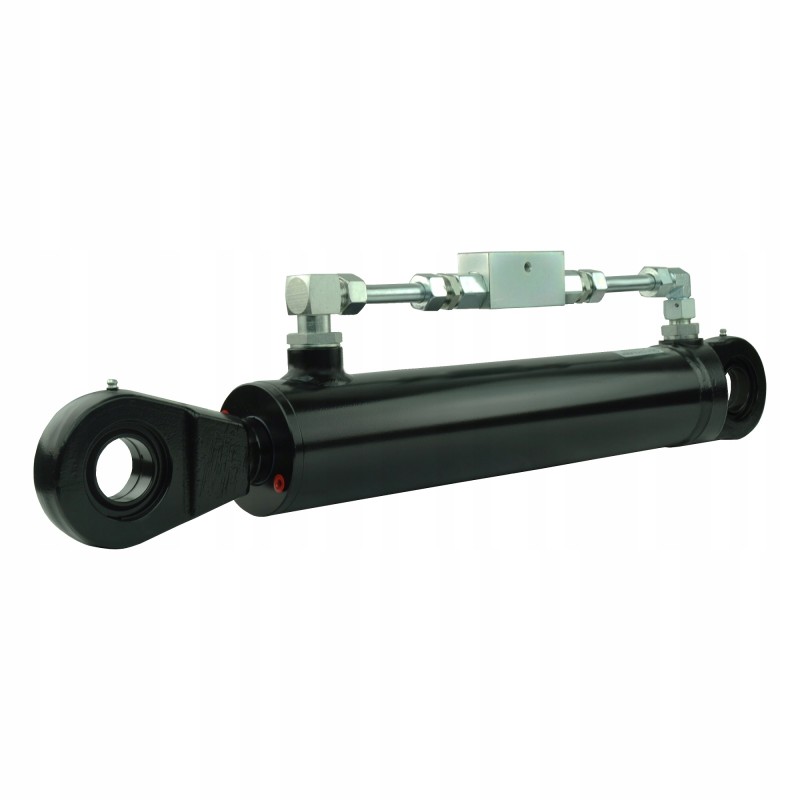

Hydraulic actuator 80 45 320 l 663 hydrolider lock

DOUBLE-ACTING HYDRAULIC CYLINDER WITH LOCK, TUBES AND CONNECTORS Production:

Original product of the Hydrolider brand, symbol: 1.33.60.003

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The cylinder is adapted to for various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Application of the safety valve:

Safety valve (lock) serves to block the movement of the actuator in both directions. It ensures stabilization of the position of the piston rod when we do not control the actuator, and at the same time large forces act on it. The valve lock stops working automatically when we start controlling the hydraulic distributor and release the pressure towards the actuator

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Head mounting on the rod side: screwed on

Gland type (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe): 92 mm

Internal diameter of the piston (pipe): 80 mm

Diameter of the piston rod (rod): 45 mm

Diameter of holes for pins: 40mm

Stroke (working movement) of the piston rod: 320 mm

Length at rest measured in the hole axes: 663 mm

Internal threads in the safety valve: BSP 1/2'

Operating parameters:

Maximum allowable operating pressure: 240 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Important!!! Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled. The set includes precise, pictorial assembly instructions along with a list of individual elements included in it
