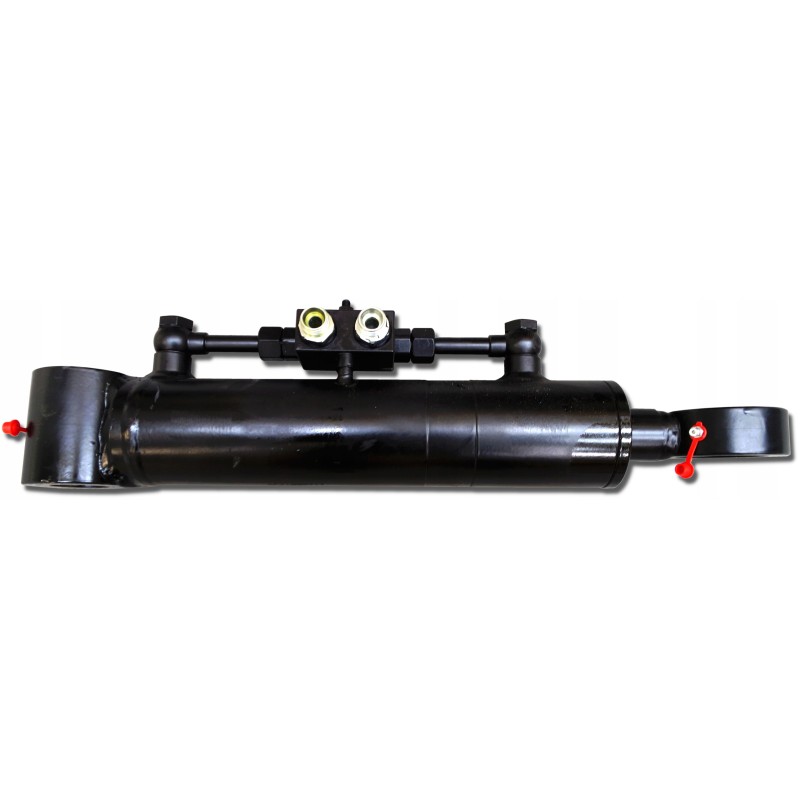

Hydraulic actuator 63x36x200 with a slope bucket valve

HYDRAULIC CYLINDER WITH VALVE FOR SLOPPING BUCKET CODE CUTTING MET: [2632]The set includes: SMT2KC cylinder 63x36x200

VBDPE 3/8L 2CEXC check valve

_____________________________________________________________________

It is worth knowing when choosing an actuator supplier.Photos and pictures only show the external appearance of the actuators. The most important elements that affect the quality and proper operation of the actuator for a long time are hidden inside (reinforced seals, stuffing box, piston rod and high-quality pipe). All our actuators ensure the highest quality of these elements. By choosing a product from our assortment, you are making a good and wise choice and the goods come from a Polish factory.

SKRAW-MET has been a leader in the production of actuators for many years. Thanks to experience, it uses only reinforced seals of Polish origin, which ensures the highest quality on the market and reliability for years!

In our other auctions you will find reinforced seals as a repair kit for this cylinder.

Polish double-acting hydraulic cylinder 200 mm with a non-return valve with used in slope bucketsSKRAW MET CODE: [2632]Manufacturer: SM-G (SKRAW MET GROUP)Used in cyclops, grabs, crocodiles, wood splitters and slope buckets.

The hydraulic cylinder is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Symbol: SMT2KC 63x36x200 Technical specifications: Length of the folded cylinder 432 mm

Piston rod stroke 200 mm

Total length of the cylinder after unfolding 632 mm

Piston rod diameter 36 mm

Valve connection holes: 2x M18x1.5

Maximum pressure 250 Bar

Permissible ambient temperature from -40'C to +60'C

Permissible oil temperature from -15'C to +80'C

Twin check valve VBDPE 3/8LTwin check valves are used in double-acting cylinders to block the movement of the piston rod in both directions. Thanks to this, the position of the piston rod is stabilized - despite the large forces exerted on the actuator when the distributor is in the neutral position. The valve lock stops working when manipulating the manifold.

Connection: Ports V1 and V2 are used to connect power.

Ports C1 and C2 should be connected to a double-acting actuator or other receiver

Material: galvanized steel
