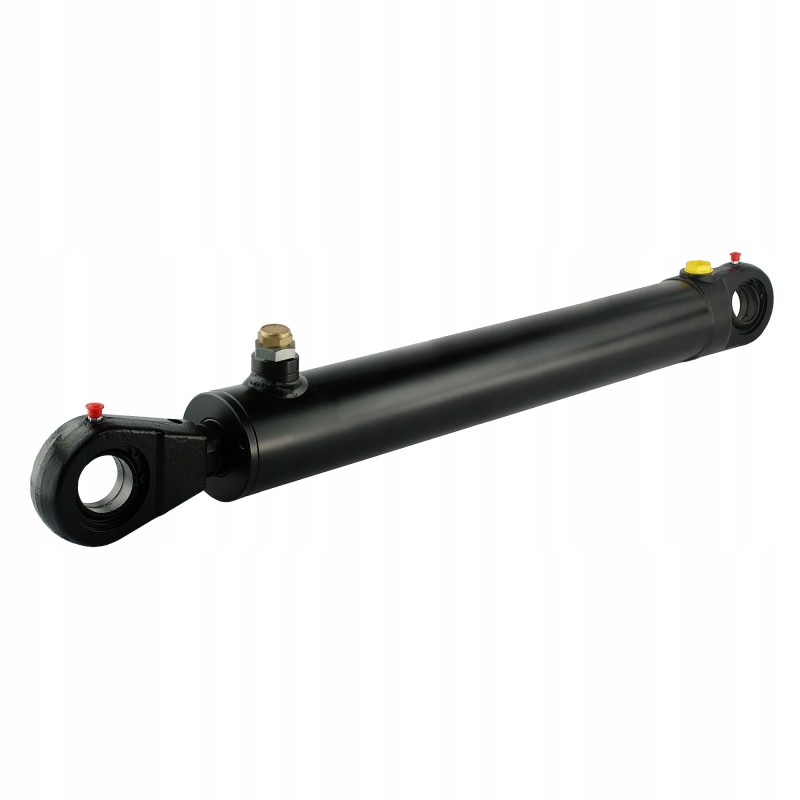

Hydraulic actuator 63 630 u35 l 910 hydrolider

Unilateral hydraulic actuator, an action with ears on swinging bearings:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.20.020.1, CJF 63/36/630 U35

Application

Application:

It is widely used in hydraulic systems in agriculture, orchards, forestry, forestry, construction and the broadly understood industry.

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

The actuator , if necessary, it can also work as a double-sided one. Just unscrew the bleeding mechanism from the hole near the piston rod and screw on the hydraulic hose. DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Head mounting on the rod side: screwed on

Gland type (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Outer diameter of the piston (pipe): 73 mm

Internal diameter of the piston (pipe): 63 mm

Diameter of the piston rod (rod): 36 mm

Diameter of holes for pins: 35mm

Stroke (working movement) of the piston rod: 630 mm

Length at rest measured in the hole axes: 910 mm

Internal threads for connections: M22x1.5

Operating parameters:

Maximum allowable operating pressure: 240 bar

Permissible ambient temperature: -40 C up to +60 C

Permissible oil temperature: -15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
