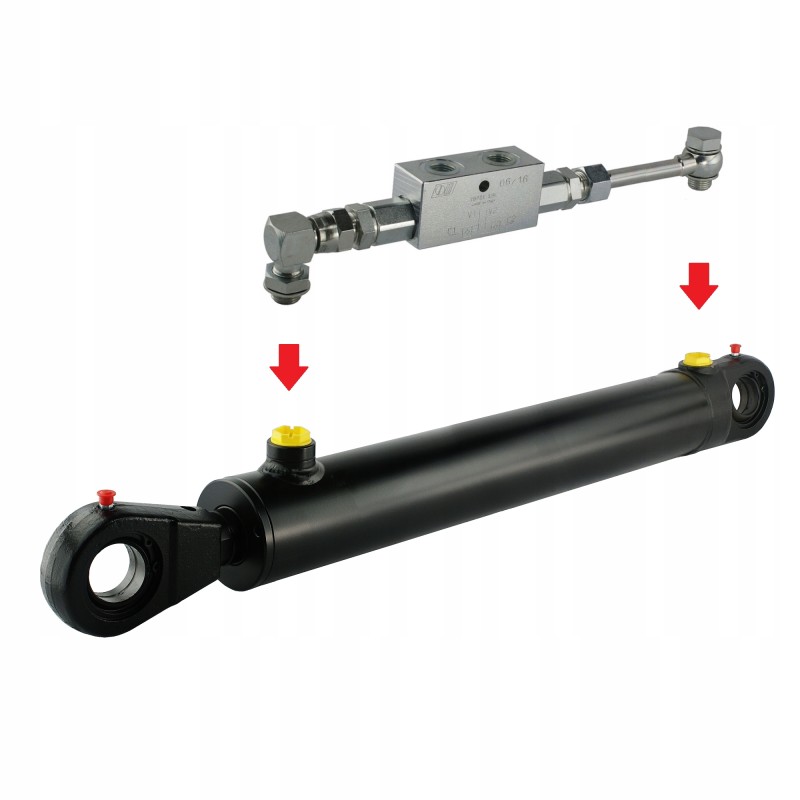

Hydraulic actuator 63 36 500 l 780 hydrolider lock

Double -sided hydraulic actuator ACTIVE A COMPLETE WITH THE SHEETING VALVE 'CASTER , construction and broadly understood industry.

The actuator is adapted to various types of agricultural machines such as: bale grabs, crocodiles, aurochs, as well as snow plows, sprayers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, machines industrial and other hydraulically controlled devices.

Application of the safety valve:

The safety valve (lock) is used to block the movement of the actuator in both directions. It ensures stabilization of the position of the piston rod when we do not control the actuator, and at the same time large forces act on it. The valve lock stops working automatically when we start controlling the hydraulic distributor and release the pressure towards the actuator. DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information about the actuator:

Head mounting on the pipe side: welded

Head mounting on the rod side: screwed on

Gland type (closing cover) : threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Cylinder dimensions:

Outer diameter of the piston (pipe): 73 mm

Internal diameter of the piston (pipe): 63 mm

Diameter of the piston rod (rod): 36 mm

Diameter of holes on pins: 35mm

Stroke (working movement) of the piston rod: 500 mm

Length at rest measured in the axes of the holes: 780 mm

Internal threads for connections: M22x1.5

Actuator operating parameters:

Maximum permissible operating pressure: 250 bar

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo) :

Important!!! Agricola sets have been designed in such a way that they can be easily assembled on your own. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent unassembled. The set includes precise, pictorial assembly instructions along with a list of individual elements included in it
