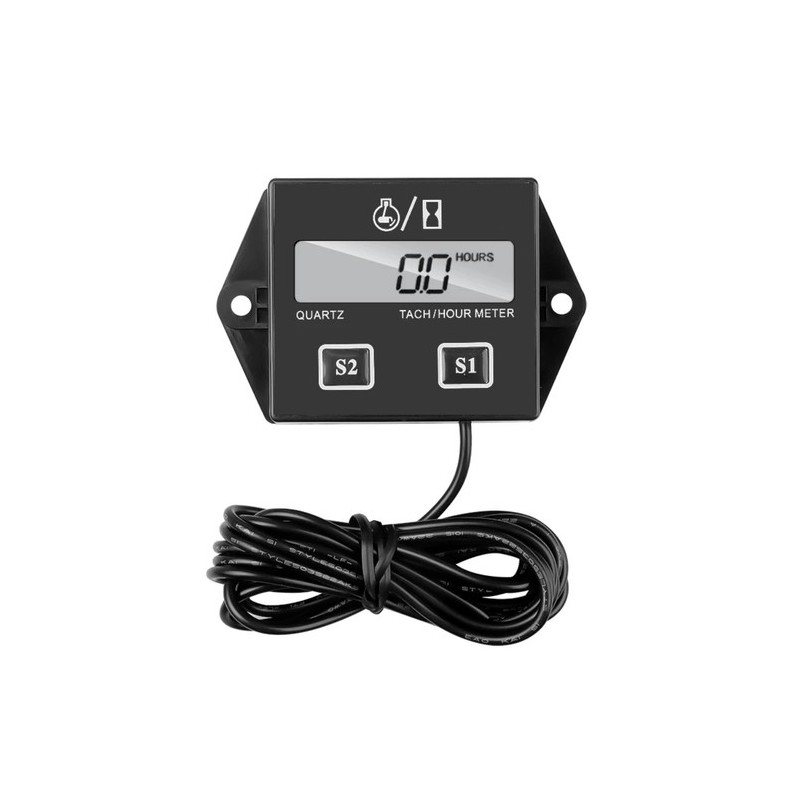

Counter generator power generator reset necessary

UNIVERSAL MOTOR HOUR COUNTER - the motor hour counter is a universal device - it will be compatible with all 2- and 4-piston combustion engines. The engine operating hours counter can be used, among others, in motorcycles, lawn mowers, quads, power generators, scooters, etc.

PRACTICAL - the engine hour counter measures the engine speed with high sensitivity, which allows for precise control of the wear of it and the components working with it. Its measurement accuracy is 0.1 hour and the measurement range is up to 9999.9 h. DURABLE - the engine operating time counter is very solid and durable, which increases the possibilities of its use. This counter is not only shockproof, but also waterproof, and can also operate at temperatures up to 85°C.

SERVICE MODE + RESET FUNCTION + RPM MEASUREMENT - SERVICE mode allows you to set the countdown to the time remaining until the next visit to the mechanic. The RESET function allows you to reset the counter when you connect it to another device or repair it. The counter can also function as an independent tachometer (RPM). SPECIFICATION - measurement range: 9999.9 h, measurement accuracy: 0.1 h, waterproof, shockproof, max. operating temperature: 85°C, for all combustion engines 2 and 4 piston, dimensions: 7.5 x 4.5 x 2cm, cable length: 185cm, weight: 53g, weight in the package: 69g.

SPECIFICATION

measurement range: 9999.9 h

measurement accuracy: 0.1 h

waterproof, shockproof

max. operating temperature: 85°C

for all 2 and 4 piston combustion engines dimensions: 7.5 x 4.5 x 2cm

cable length: 185cm

weight: 53g

weight in package: 69g

The practical engine operating hours counter is a small, universal product dedicated to 2- and 4-piston combustion devices. It allows you to measure the operating time of quads, scooters, motorcycles, lawn mowers, power generators, and many other combustion machines. The engine operating time counter has a clear display and its operation is very simple.

ADVANTAGES built-in battery

turns on automatically after starting the engine After turning off the engine, it displays the engine hours helpful in controlling service activities

easy and quick installation

Polish language manual included suitable for 2T and 4T engines RPM range 0-9999.9

waterproof and shockproof

service mode

reset function

tachometer

UNIVERSAL APPLICATION The meter allows you to measure the operating time of scooters, motorcycles, lawn mowers, power generators, and many other combustion machines.

EASY INSTALLATION Installation is carried out using the included cable, which is wrapped several times as close to the spark plug wire as possible and then secured with clamps. The operating hours counter can be installed anywhere, e.g. on double-sided tape, and it also has holes for attaching wristbands.

SHOCKPROOF AND WATERPROOF The product is small in size. It is resistant to shocks and unfavorable weather conditions - waterproof.

LCD DISPLAYThe electronic counter has a high-contrast LCD display that guarantees trouble-free reading of the measurement.

ADDITIONAL FUNCTIONS S1 - TACHOMETER

Press and hold the S1 button. The display will display 01 (spark plug lights twice per revolution) 02 (once per revolution) 03 (every other revolution) 04 (only the time does not display revolutions per minute). Once you have found the appropriate spark plug pattern, release the S1 button. The display will flash for 8-10 seconds and return to total hour counter mode. The value of the standard model is 02.

S2 - SERVICE MODE

Press the S2 button for 4 seconds. The first digit on the right will flash and the SERVICE icon will appear. Pressing and holding the S1 button will automatically increase the flashing digit. Once the desired digit is reached, release the S1 button. Repeat until the service interval is entered.

S1+S2 - RESET FUNCTION

COMPACT DIMENSIONS The small dimensions of the hour counter mean that it can be easily connected to various types of devices without having to worry about the amount of space available.
