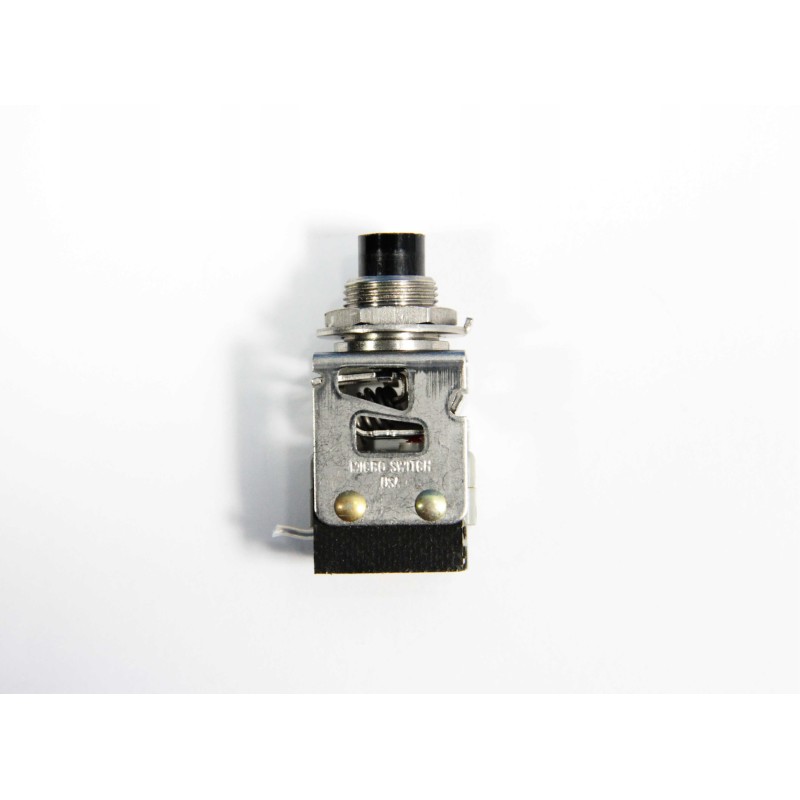

We offer you an unstable aircraft button produced by the American company Honeywell, formerly Microswitch.

The button was produced for aviation and military equipment.

After pressing and releasing, it returns to its place.

The button uses two switchable microshwitch modules as contact elements.

Each module has one pair of switched contacts (NO - NC).

Contact load capacity: 5A at 28V, 0.5A for 250V.

The rest of the data on the scan.

The component has been designed in such a way that when pressed, it produces a characteristic click signaling activation.

The working stroke is approx. 3 mm.

At the same time, even very strong pressing does not damage the contact elements, because there is an internal lock.

The switch has gold-plated silver contacts.

It also works well with small signals.

Mounting in a hole in the front plate with a diameter of 12 mm (mounting nut and washer lock included).

The switch body is non-magnetic, made of stainless steel.

Switch dimensions: 19x20 mm.

Mounting depth: 25 mm.

The switch is functional, unused.

One pair of contacts has short cables soldered.

We provide a warranty boot.
