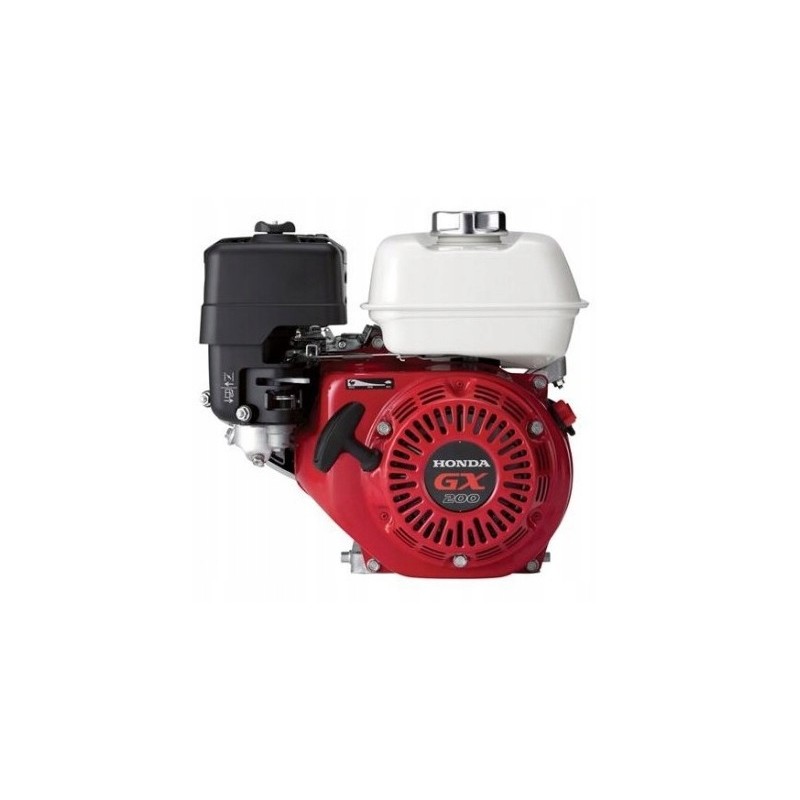

Honda original gx200 sx4 20mm engine

Original HONDA GX200 SX4 Engine Shaft Dimension 20mm GX Series

Honda is recognized as a leader in the design and production of robust and technologically advanced 4-stroke gasoline engines. Today we can offer you a full line of engines from 1.0 to 24 HP, with both horizontal and vertical shafts. Overhead valve OHV engines are light and economical with optimized fuel consumption.

GX200U SX4 OH 5.5 HP - technical dataModel: GX200U SX4 OH 5.5 HP

Engine type: four-stroke, overhead valve OHV, air-cooled, horizontal shaft

Cylinder type: steel

Shaft diameter: horizontal 20mm

Displacement: 196 cm3

Diameter x stroke: 68 x 54 mm

Compression: 8.5: 1

Maximum power: 4.1 kW (5.5 HP) / 3600 rpm

Continuous power: 3.3 kW (4.4 HP) / 3000 rpm 3.7 kW (5.0 HP) / 3600 rpm

Max torque: 12.4 Nm / 1.26 kgm / 2500 rpm -1

Ignition: electronic

Starting: manual (option: electric starter)

Fuel tank capacity: 3.10 l

Fuel consumption: 1.7 l/h / 3600 rpm

Oil sump capacity: 0.6 l

Dimensions (length x width x height): 313 x 376 x 346 mm

Weight: 16.0 kg

The GX series of professional engines is:

durability: the highest quality of workmanship and materials used, OHV technology (the exception is the GX100 engine made with OHC)

power: the highest power achieved from the engine capacity

service life: all components designed for continuous operation in difficult conditions.

Economics:

lowest fuel consumption in its class,

easy starting, decompression system

ecology, meets all global standards.
