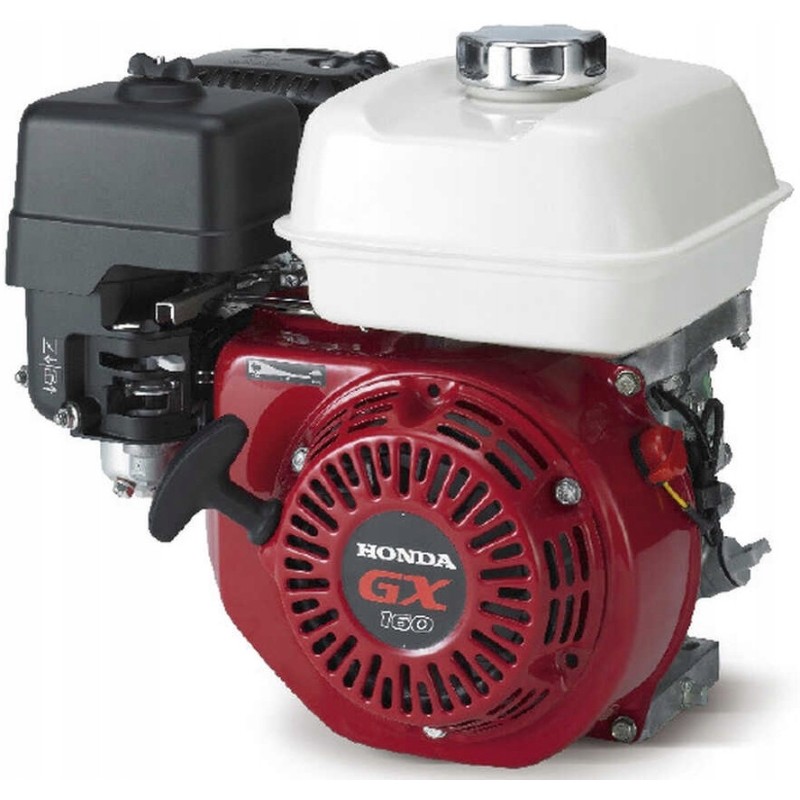

Honda gx160h2sx3oh internal combustion engine

Honda GX 160H2 SX3 OH engine (4.8 HP)

Technical data:

Model: GX 160H2 SX3 OH 4.8 HP

Engine type: four-stroke, overhead valve OHV, air-cooled, horizontal shaft

Cylinder type: steel

Shaft type: horizontal

Displacement: 163 cm3

Diameter x stroke: 68 x 45 mm

Compression: 8.5: 1

Max. power: 3.6 kW (4.8 HP) / 3600 rpm

Continuous power: 2, 5 kW (3.4 HP) / 3000 rpm 2.9 kW (3.9 HP) / 3600 rpm

Max torque: 10.3 Nm / 1.05 kgm / 2500 rpm

Ignition: electronic

Starting: manual (option: electric starter)

Fuel tank capacity: 3.10 l

Fuel consumption: 1.4 l/h / 3600 rpm

Oil sump capacity: 0.6 l

Dimensions (length x width x height): 312 x 362 x 346 mm

Weight: 15.0 kg

IF IN ANY DOUBT, WE WILL ASSIST YOU WITH THE CORRECT SELECTION OF THE ENGINE.

"The given price includes the cost of pre-sale inspection (zero), which is one of the conditions for receiving the warranty device or machine*. Performing the zero inspection is the Seller's obligation, but it is possible to perform the zero inspection for a fee at another Authorized Dealer or Aries Power Service Center.

Performing the pre-sale (zero) inspection is the Seller's obligation before sending the device to the Customer, it includes, among others: inspection of the external appearance and equipment - possible damage to the paint, dents, mechanical damage, attaching the user manual, correctly completing the warranty card, starting the device, checking the operation of the control devices, preparing the device for shipment - sucking out the fuel and oil, returning the device to the original box. Conditions warranty can be found on the website of the Distributor - Aries Power Equipment Sp. z o. o.
