High pressure filter spm 302 fv1 cb4 03x sofima

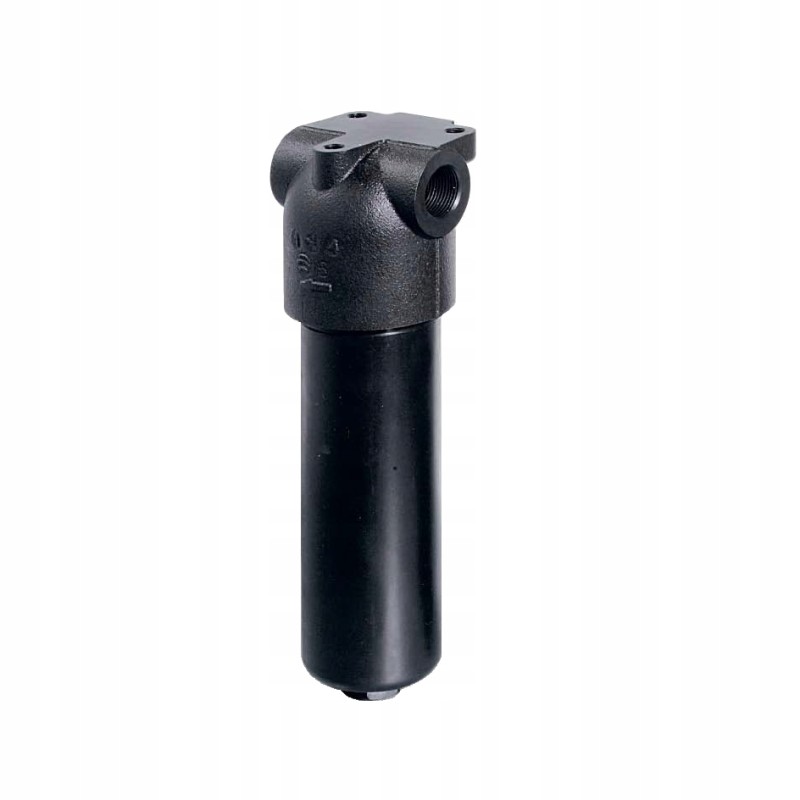

HIGH PRESSURE LINEAR FILTER SPM 302 MAXIMUM FLOW: 110L/min Production:

Sofima, symbol: 1.47.02.022

Application:

Widely used in hydraulic systems in agriculture, construction and industry.

Filter installed in external hydraulic systems, on the pressure line between the pump and distributor or after the distributor on individual sections. It has a very wide range of applications in hydraulics, it protects delicate components of the set, such as the pump and the distributor, against damage

The filter insert is replaceable and can be purchased at our other auctions

Technical data:

The filter is equipped with a special so-called bypass valve, which ensures bypassing the stream oil in case of dirt and blockage of the filter mesh.

Type: SPM 302 FV1 CB4 03X

Internal thread (on both sides): 3/4'

Flow: 60 L/min - oil with a density of 30 CST (equivalent to HL 30)

Filtration : 21 µ

Maximum pressure: 220bar

Burst pressure: 660bar
