Hifi filter so 404 engine oil filter

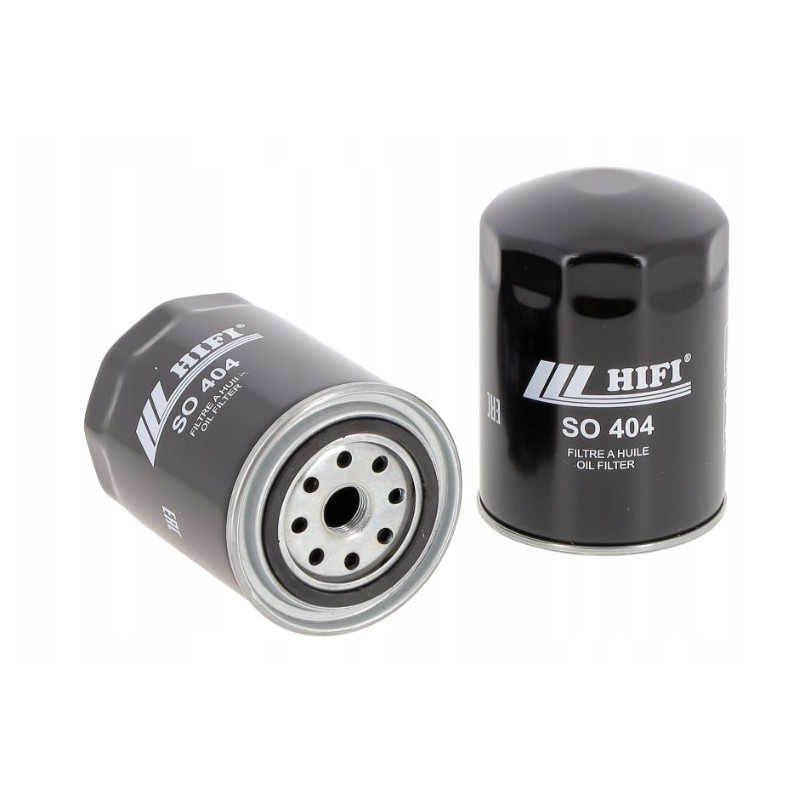

HIFI FILTER SO 404 engine oil filter Advantages of the HIFI FILTER SO 404 filter:

effective filtration

retaining dust, abrasive metal particles and combustion residues separation of oil from impurities noticeably longer engine life attention to every detail to prevent losses resulting from excavator downtime SO 404 OIL FILTER: AN IMPORTANT PART OF THE ENGINE Oil is a key element in the operation of a diesel or gasoline engine. It is responsible for lubricating moving parts, thus preventing premature engine wear and permanent damage. To perform its functions as it should, it must always remain clean thanks to effective filtration that retains dust, abrasive metal particles and combustion residues. By separating these contaminants from the oil as it flows through the system, the oil filter ensures long engine life and performance. That's why it's so important to choose a filter with a high retention capacity and replace it regularly with every oil change.

HIFI FILTER®: THE BEST CHOICE AMONG MACHINE OIL FILTER

Compatible with all devices, these HIFI FILTER® oil filters ensure proper cleaning of the oil circuit even in the most difficult conditions.

HIFI FILTER SO 404 engine oil filter - technical specification H1(mm) 144

H2(mm) 141

H3 (mm) 7

D1 (mm) 94

D2 (mm) 91

D3 (mm) 72

D7 Thread 3/4'-16UNF

Number of non-return valves

2

Number of by-pass valves

1

Match table

BOBCAT

VR723, VR638, VR530 C, VR518, V723, V638, V623, V518, T40150, T40140, T3093, T3071, T2566, 974, 970, 963G, 963, 953, 943, 825, 2410, 2400

CASE

335

CASE

WX90, WX120, CX90, CX80, CX60, CX50, CX100, CS94, CS86, CS78, CS64 A, CS64, CS63, CS58 A, CS58, CS52, CS48 A, CS48, CS42, C90, C80, C70, C100, 695 SUPER M, 595 LSP

CATERPILLAR

XQE135, VC50 C, V90 E, V80 E, V80 D/F, V70 E, V60 E, V51 D, TH83, TH82, PS300 B, M322 C, M318 C, M316 C, GEP 150, GEP 110 SA, GEP100, DE50 E0, DE33 E3, CS683 E, CS663 E, CS573 E, CS63 E, CP663 E, CB434 C, 924G SERIES III, 434CB, 428, 426, 416, 307L, 307, 3056E, 3056, 3034D, 206, 205

DOOSAN DAEWOO

D70, D60, D50, D45 S, D40 S, D35 S

FIAT HITACHI

W80, FK120 W, FH95 W, FH95, FH90 W, FH85 W, FH65 W, FH120 W, FH115 W

FIAT KOBELCO

W80, EX125 WT

JCB

TELETRUK TLT 25-30, FASTRAC 145, FASTRAC 135, FASTRAC 130, 930, 926-4, 926, 921, 820 S, 820 D, 820, 818 S, 818, 817, 816 S, 814 S, 811, 805 BT , 716, 540 XL, 540 B, 540-70, 537-135, 537-130, 535 S, 535-95T, 535-67, 533-105, 532-120, 530 B, 530-95, 530-70 , 530-67, 530-120, 530-110, 528 S, 528-70, 527-67, 527-58, 526-55, 525 FS, 525 B, 525-67, 525-58, 525-50, 525, 520-55 FS, 520-55, 520/525 B, 520-50 COMPAC, 520-50, 520-40, 520, 4D, 4 CX, 4 T, 4 CT, 4 CN, 480 B, 436 ZX /B LE, 436 B, 436, 435, 430, 426 ZX, 426, 415, 414 S, 412, 411 B, 410, 409 B, 409, 408 ZX, 408 B, 408, 407, 3D, 3CX 4 T , 3CX 4 RM CP, 3CX, 3C, 2DX, 2CX, 1 CX SLP

KOMATSU

SK09 J, PW 95, PC 410-5, PC 240 NLC-3 KP

NEUSON

8002

NEW HOLLAND

TN95 VA, TN95 NA, TN75 VA, TN70 VA, TN 60 VA, TMV 75 VIGNERON, LB110

SCHAEFF

ZL8, SMB2041, SKS661, SKS631, SKL873, SKL863, SKL861 B, SKL853, SKL851 B, SKL851 A, SKL843, SKL841 B, SKL841 A, SKL835, SKL820, SKB902, SKB900, SKB700, SKB1000 , HR30, HML40 B, HML40 A , HML30 E/F

TEREX

TX760, TX750, PT80, 3509, 3013

VOLVO

S830, L30, 4200

Choosing HIFI FILTER products:

you gain effective filtration and the certainty that the excavator will not let you down when you need it most you protect the hydraulic system against various types of contamination you extend the life of the hydraulic system you ensure proper cleaning of the oil circulation in your machine even in the most difficult conditions
