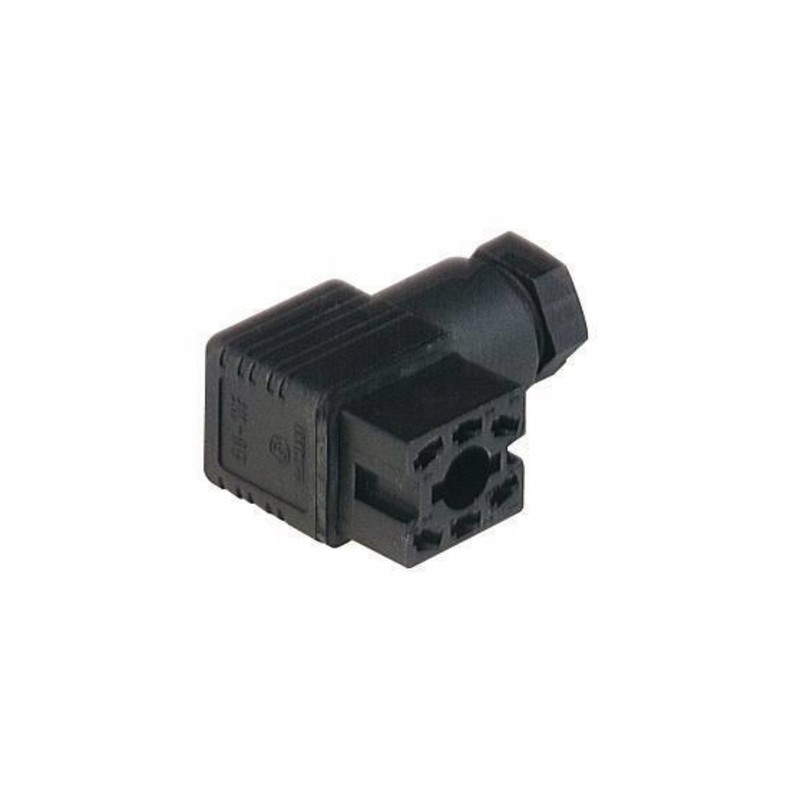

Go 60 wf female connector for Hirschmann cable

GO 60 WF connector (manufacturer's catalog number 932448100) female for 6-pin cable (DIN VDE 0627 / IEC 61984 standard), other markings 6006685, DOS-1406-W

Operating voltage: 250 V ~/=

Operating current: 6 A

Transition resistance: <.4 mΩ

Cable gland: PG7

Cable outer diameter 4 to 7.5mm Wire cross-section: 0.14 to 0.5mm2

Connection type: soldered

Contact surface: tin-plated Housing material: PA (94V-1)

Degree of tightness: IP 65

Operating temperature: -40°C to +90°C

Delivery items: cable connector, M3x20 central screw, gasket Suitable for combination with: GO 60 FAV M

*** NOTE ***

There are three types of connectors available in an identical housing, i.e. GO 51 WF, GO 6 WF and GO 60 WF.

The connectors have identical dimensions and differ only in coding.

If you are not sure what type connector you need, please compare the connector you have with the drawing below.

The drawing shows versions for the housing (male connectors)

- GO 51 FAV M suitable for connection with GO 51 WF

- GO 6 FAV M suitable for connection with GO 6 WF

- GO 60 FAV M suitable for combination with GO 60 WF
