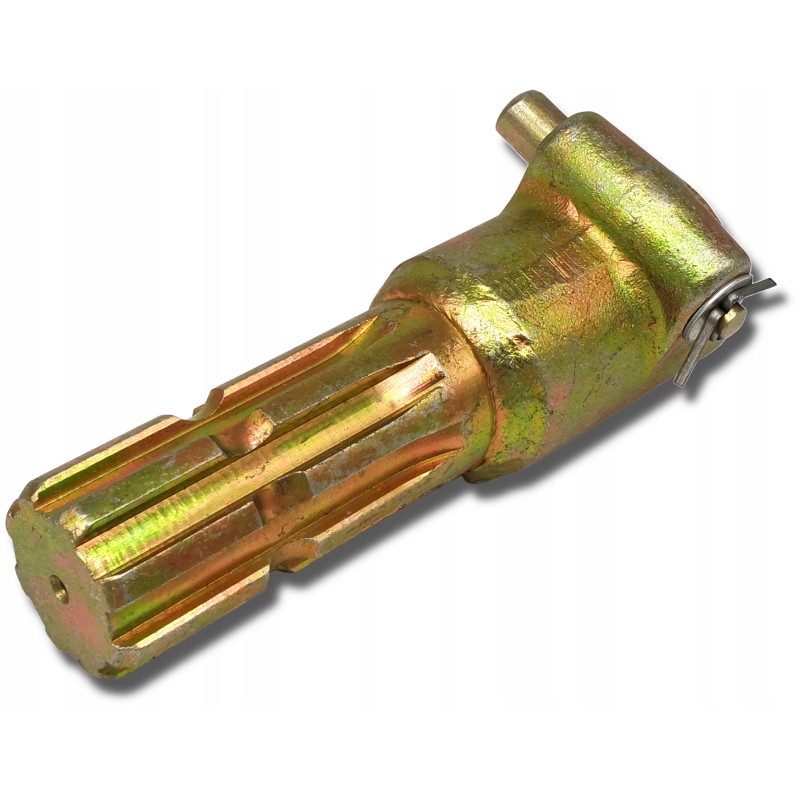

Quick coupler reduction PTO shaft 6 8 Mtz Jumz T 25

REDUCTION FOR 6/8 PTO SHAFT FOR MTZ, JUMZ, T-25. REDUCTION LENGTH = 161MM SKRAW-MET CODE: [3167] The quick connector allows the use of the Russian type of shaft for 8 cutters in Polish tractors with a PTO with 6 cutters.

The reduction shaft is secured by a spring pin.

Technical specifications: Length - 161mm

Pull diameter at the base of the tooth - 28mm

Pen diameter at the top of the tooth - 35mm

Pen length - 91mm

Diameter of the lower part of the reduction - 48.5mm

Inner diameter at the base of the tooth of the reduction part - 32mm

Inner diameter at the top of the tooth of the reduction part - 38mm

Outer diameter of the reducing part - 50mm

Depth of the reducing part - 60mm
