Plug ABS plug 5 pin 24v truck trailer semi-trailer

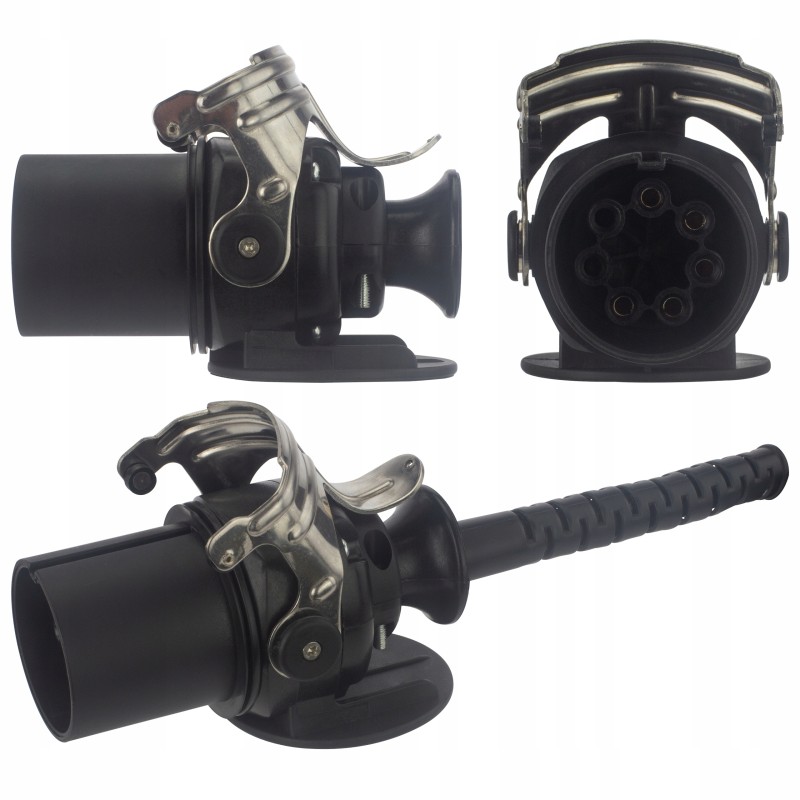

ABS 5-pin 24V twisted trailer plug. A universal 5-pin plug designed to connect and power the ABS system using 24V voltage in semi-trailers, high-capacity trailers and other heavy vehicles.

It ensures a permanent connection of the semi-trailer's electrical installation with the towing vehicle (e.g. tractor unit), ensuring uninterrupted operation of the ABS while driving. It is characterized by easy operation and connection, is fully dismountable.

The most important features: Universal, fits any type of semi-trailer/trailer

Provides mechanical relief of the cable

Durable, damage- and weather-resistant housing made of hard plastic

Case construction ensures easy assembly and disassembly

Metal contact sleeves guarantee correct electrical connection in all conditions

The cable is inserted through a rubber sleeve fastened with a screw in the cable entry

The rubber sleeve also serves as a seal and protects the cable against damage

Thanks to stainless steel metal pins ensures secure mounting of the plug

The set includes 4 mounting screws to assemble the socket

Specification: Manufacturer: HYBSZ

Symbol: WABS-S

Type: ABS 5-pin trailer plug for cable

Voltage: 24V

Connector: plug 7-pin (female connector) for ABS system (5-active pins + 2 empty pins)

Case: solid plastic

Connection: screwed

Cable assembly method: numbered screw terminals

Max cable diameter: 13, 5 mm

Color: black

Plug length: 115 mm

Connector diameter: 49 mm

Weight: 230 g

ABS system ABS braking system Anti-Lock Braking System, Polish anti-lock braking system - a system that senses wheel slip and automatically modulates the pressure to create braking forces at the wheels that limit the degree of slip. It belongs to the group of advanced vehicle control systems. Its direct development are ASR systems, it is also used as a component of more developed systems such as ESP or Adaptive Cruise Control.

ABS reduces the risk of the following phenomena occurring after the wheels lock, such as the car pulling to the side, the car spinning, loss of steering control. The length of the braking distance of a vehicle equipped with an ABS system compared to an identical vehicle without this system depends on several factors, such as: external conditions and driver's skills.

Diagram of the 5-pin 24V ABS connector: Pole 1 (30) - Function: constant voltage 24V for control valves - Wire: red

Pole 2 (15) - Function: 24V voltage to control the electronics via the ignition switch - Wire: black

Pole 3 (31) - Function: ground for pin 2 (electronic part) - Wire: yellow

Pole 4 (31) - Function: ground for pin 1 (hydraulic part) - Cable: brown

Pole 5 - Function: ABS error indication - Cable: white

Pole 6 - Inactive

Pole 7 - Inactive

Application of HYBSZ brand products: trailers and transport trailers

car trailers

semitrailers

tractors

trucks

caravans

campers

agricultural machinery

buses, coaches

automotive industry

Polish production The presented article has been produced entirely in Poland. The highest quality materials were used in the production process, and the final product was subjected to demanding quality control.

The level of workmanship is unrivaled in comparison to goods imported from China or Taiwan.

About the manufacturer SH HYBSZ is a Polish manufacturer of electrical cables, spiral cables and cable harnesses. It offers high-quality products that meet the expectations of customers around the world. The company focuses on new production solutions using modern technological devices.

Thanks to its highly developed finished products plant, the company supplies the market with parts for motor vehicles, especially trucks and semi-trailers, trailers and trailers. The factory produces, among others: spiral cables, pneumatic cables, plugs, sockets, battery and starter cables.

Our offer includes more plugs, sockets and 12V and 24V car cables from the Polish brand HYBSZ. Enjoy your shopping! Trailer adapters 7-pin/13-pin 12V
