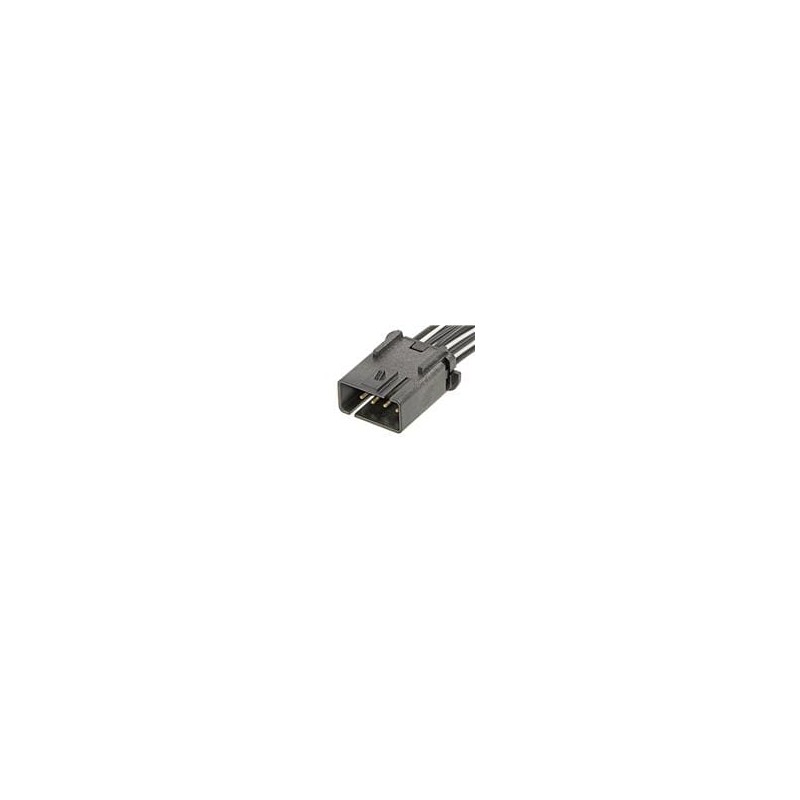

    10 pcs : 205925-0010 - Heavy Duty Power Connectors MultiCat MPWR PLUG HSG 8CKT KEY A BLK
    • 10 pcs : 205925-0010 - Heavy Duty Power Connectors MultiCat MPWR PLUG HSG 8CKT KEY A BLK

    10 pcs : 205925-0010 - Heavy Duty Power Connectors MultiCat MPWR PLUG HSG 8CKT KEY A BLK

    10(electronicparts)5382059250010
    MOLEX
    10 pcs : 205925-0010 - Heavy Duty Power Connectors MultiCat MPWR PLUG HSG 8CKT KEY A BLK
    £53.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MultiCat Mid-Power Connectors Molex MultiCat Mid-Power Connector System with Precision-Machined Contacts provides 6.5A per contact with a contact resistance of ≤1mΩ for the high-power version and 10mΩ for the mid-power version. These contacts accommodate 20AWG to 28AWG wire and withstand at least 500 mating cycles. Molex MultiCat Mid-Power Connectors have a two-piece hermaphroditic backshell, connector position assurance (CPA) with visual indicator, and a solid mass contact to resist damage in blind-mate applications. These connectors can be mated quickly and are ideal for commercial aviation, industrial automation, commercial vehicles, and telecommunications.
    Product Details
    MOLEX
    10(electronicparts)5382059250010
    205925-0010
    10 Items

    Data sheet

    Manufacturer
    MOLEX
    Current rating
    -
    IP rating
    -
    Contact material
    -
    Contact plating
    -
    Number of positions
    8 Position
    Series
    205925
    Accessory Type
    -
    Voltage Rating
    -
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    Free Hanging
    Housing Material
    Polyetherimide (PEI)
    Thread Size
    -
    Housing Colour
    Black
    Product Type
    Heavy Duty Power Connectors
    Number of Rows
    2 Row
    Contact Gender
    -
    Pitch
    3.6 mm
    Cable Entry Angle
    -
    Termination Style
    Crimp
    Product Category
    Heavy Duty Power Connectors
    Flammability Rating
    UL 94 V-0
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Molex
    Product
    Housings
    Factory Pack Quantity Factory Pack Quantity
    1536
    Subcategory
    Power Connectors
    Tradename
    MultiCat
    Unit Weight
    3.782 g
    Part # Aliases
    2059250010 0259250010 2059250010-FCT
    Wire Gauge Min
    -
    Wire Gauge Max
    -
    Mounting Angle
    Straight
    Row Spacing
    3.6 mm
    Boardlocks
    -
    Housing/Hood Size
    -
    Insert/Contact Gender
    -
    Housing Gender
    Male
