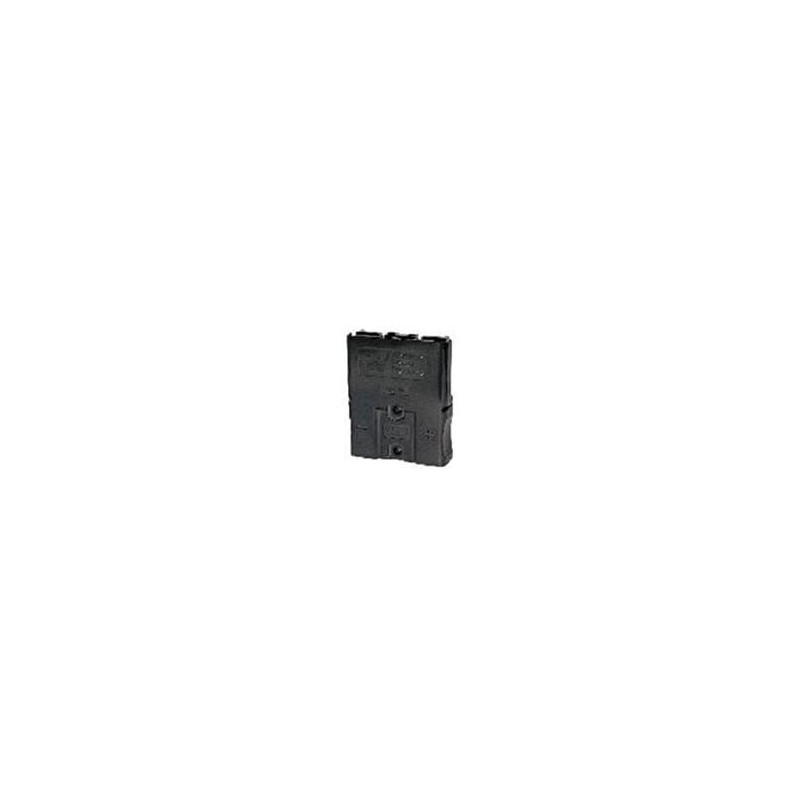

    1 pcs : SBS75XBLK-BK - Heavy Duty Power Connectors SBS75x HOUSING ONLY BLACK - BULK
    • 1 pcs : SBS75XBLK-BK - Heavy Duty Power Connectors SBS75x HOUSING ONLY BLACK - BULK

    1 pcs : SBS75XBLK-BK - Heavy Duty Power Connectors SBS75x HOUSING ONLY BLACK - BULK

    electronicparts-UK/M/879-SBS75XBLK-BK
    £17.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SBS®75x Connectors Anderson Power Products SBS®75x Connector provides high power and auxiliary connections in a single housing. Wire-to-wire and wire-to-board configurations feature two power contacts rated up to 110 amps and up to 4 auxiliary power contacts rated up to 20 amps. The patented SBS®75x Connector complies with IEC60950 finger proof requirements to provide user protection and safety. This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. The auxiliary pin contacts on the wire connector are available in four lengths when sequencing is required. Auxiliaries have a mate last / break first connection in relation to the power contacts. All contact positions are rated for circuit interruption (hot plugging).
    Product Details
    ANDERSON POWER PRODUCTS
    electronicparts-UK/M/879-SBS75XBLK-BK
    SBS75XBLK-BK
    10 Items

    Data sheet

    Manufacturer
    ANDERSON POWER PRODUCTS
    Current rating
    75 A
    IP rating
    IP20
    Contact material
    -
    Contact plating
    -
    Number of positions
    6 Position
    Series
    SBS75X
    Accessory Type
    -
    Voltage Rating
    600 V
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 20 C
    Mounting Style
    Free Hanging
    Housing Material
    Polycarbonate (PC)
    Thread Size
    -
    Housing Colour
    Black
    Product Type
    Heavy Duty Power Connectors
    Number of Rows
    -
    Contact Gender
    -
    Pitch
    -
    Cable Entry Angle
    -
    Termination Style
    Crimp
    Product Category
    Heavy Duty Power Connectors
    Flammability Rating
    UL 94 V-0
    Packaging
    Bulk
    RoHS
    Details
    Brand
    Anderson Power Products
    Product
    Housings
    Factory Pack Quantity Factory Pack Quantity
    250
    Subcategory
    Power Connectors
    Tradename
    SBS
    Unit Weight
    22 g
    Wire Gauge Min
    -
    Wire Gauge Max
    -
    Mounting Angle
    Straight
    Boardlocks
    -
    Housing/Hood Size
    -
    Insert/Contact Gender
    -
    Housing Gender
    -
