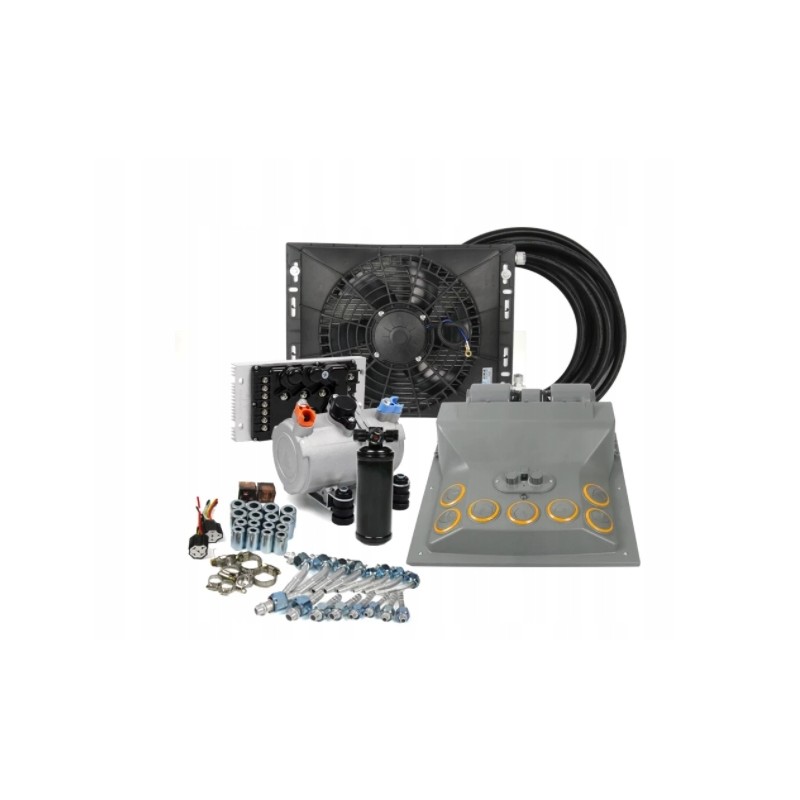

AIR CONDITIONING COMPRESSOR
CONDENSERFANDRYER WITH SENSORENDS WITH SLEEVESHOSES SET 12 METERSINSTALLATION INSTRUCTIONSPOSSIBILITY OF INSTALLATION IN OUR COMPANYGeneral dataRefrigerant (gas): R134aSpeed range: 1000 ~ 2300 rpm / 1000 ~ 3300 rpm Working pressure: Suction pressure: 0.2 ~ 0.45mpa Discharge pressure: ≤ 2.0mpa / ≤ 2.2mpa Pressure coefficient: ≤ 10 Ambient temperature: -40℃ - 80℃ Discharge temperature: ≤ 110℃ Lubricating oil requires: 8%-10% of the total system refrigerant (gas)
Compressor data:Semi-closed horizontal drum compressor Material: alloy aluminum Voltage: DC 12V / 24V Working voltage range: 10.5vdc ~ 15vdc / 19.5vdc ~ 32vdc Current: 45A +-2 / 35A +-2 Capacity: 21cm ³/r Cooling capacity: 1,688kw / 2,465 kw (5731BTU / 8410BTU) Speed range: 1000 - 2300 rpm/1000 - 3000 rpm Rated power: 550W / 850w Rated speed: 1800 rpm/3000 rpm Oil: POE / 130ml - 150ml (oil already in compressor) Gas/Refrigerant: R134a Condensing temperature range: 26.7 ~ 68 ℃ Evaporating temperature range: -10 ~ 12.5 ℃Data sheet
