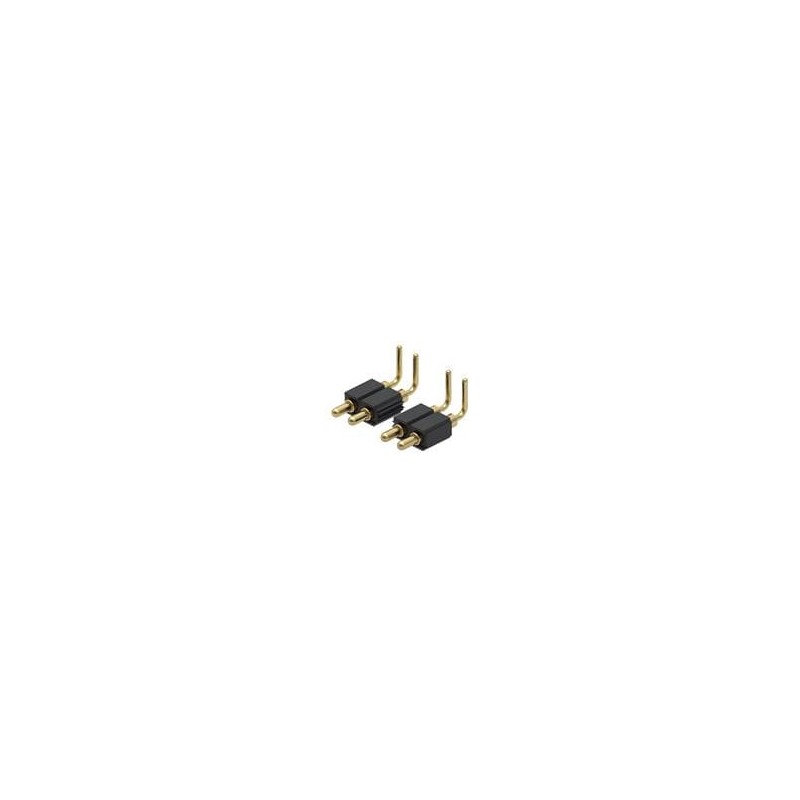

1 pcs : 829-22-020-20-002101 - Headers & Wire Housings R/A Spring Loaded Header, 20P, 1R

Mill-Max 829 Spring-Loaded Connectors - EXPANSION Mill-Max's 829 Series Spring-Loaded Connectors offering has been expanded to include the 20-position in-line spring-loaded header. The 20-position spring-loaded header provides an increased stroke allowing for greater tolerance in the assembly of the design. Learn More Mill-Max 829 Series Spring-Loaded Connectors are single-row, right-angle strips ideal for spring-loaded connections that lie parallel to the PC board. The low profile connectors offer the superior characteristics of other Mill-Max connectors, but has an increased mid-stroke distance of .045' - more than double most standard series product. The Mill-Max 829 Series Spring-Loaded Connectors are installed as a through-hole component and are suitable for hand, intrusive reflow, or wave soldering. The 829 Series features low resistance high current contacts that are rated at 2A continuous (3A peak per pin) and are available from 2 to 20 positions in a strip. This low profile, right angle connector is ideal for the small packaging requirements of hand-held devices, especially where vertical space is limited. View the entire 829 Series Spring-Loaded Connector series
