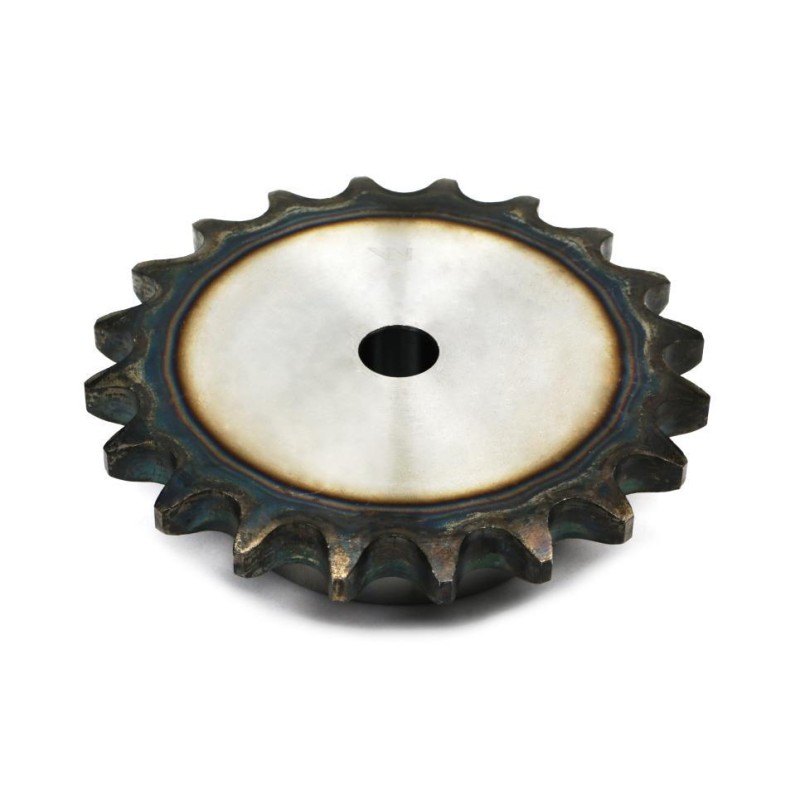

Hardened gear wheel with flange 10b 1 r1 5 8 of 29 warynski w s10b1 29

Hardened sprocket with collar 10B-1 (R1 5/8) Z-29 Waryński Index W-S10B1-29 Hardened sprocket with disc W-T10B1 Z-29 Waryński Universal chain sprocket with a hub with a hole for turning. Suitable for chains of the standard PN77/M-84168, DIN 8187, ISO 606

Increased abrasion resistance. Induction hardening of teeth makes the wheels last longer and are more resistant to abrasion. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid.

Extended service life. This is due to the precision of the teeth, pitch and pitch diameter, thanks to which the chain cooperates with the wheel without unnecessary resistance. This prevents abrasion of the rollers and stretching and damage of the chains.

Increased resistance to cracking. All wheels are made of high-carbon steel. Very good cooperation with Waryński chains. Accurate and repeatable distances between the teeth ensure that the chain fits perfectly on the wheel, thus not damaging the chain.

Material: C45

Number of teeth: 29

Type: Single

Chain size: 10B-1 (R1 5/8)

A Tooth tip diameter: 153.8 mmmm

B Pitch diameter: 146.83 mmmm

C Tooth width: 9 .1 mmmm

D Hub diameter: 90mm

E Total width: 35mm

F Hole diameter: 20 mmmm

EAN 5902287107555

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.
