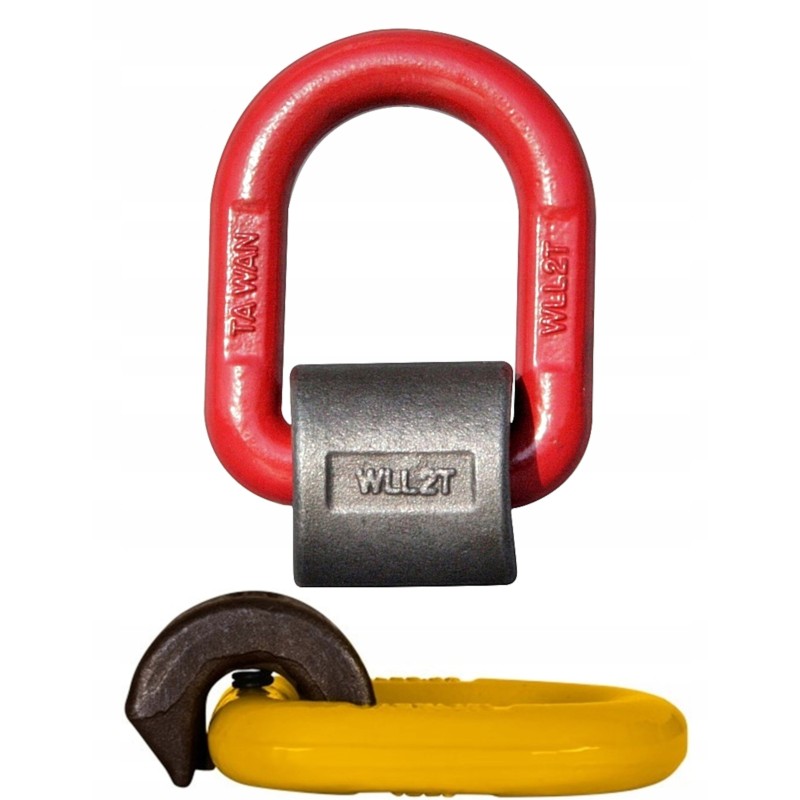

Handle for welding 5 3t CE approved

WELDING BRACKET - LOADING EAR DOR: 5,300 kg/ 5.3 t

EXECUTION:

After welding, the D-ring type welding bracket allows for free rotation of 180 degrees around the base axis while maintaining an even load. Connection of the handle to the base element by welding. The handle is equipped with a spring that allows you to hold the ear in any position, and at the same time, the spring placed between the ear and the mounting element limits the noise caused by vibrations. Powder-coated handle in yellow or red (color depends on delivery), made of drop-forged alloy steel. Available in DOR versions: 1.12t, 2.0t, 3.15t, 5.3t, 8.0t, 15.0t.

HANDLE MEETS THE STANDARD: EN 1677

SAFETY FACTOR: 4:1

APPLICATION:

For chain slings , tension, rope, textile, for lifting equipment, for vehicle frames, trailers, as well as in other industries that require lifting weights in full safety. Suitable for use in the temperature range from -40°C to 200°C without reducing the working load limit

FEATURES:

Handle made of high quality alloy steel [42Cr MO]. Grade 80 (forged and hardened)

For use with slings, chain tensioners, transport belts, tow ropes, etc. ....

Handle marking: manufacturer's code, WLL, size, CE

Tested proof load [MPF] up to 2.0 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without reducing the working load limit

Extreme load [breaking force] is four times greater

Each handle has:

Marking: manufacturer's code / Max strength: WLL … T / CE /

Documentation: Certificate in paper version on request
