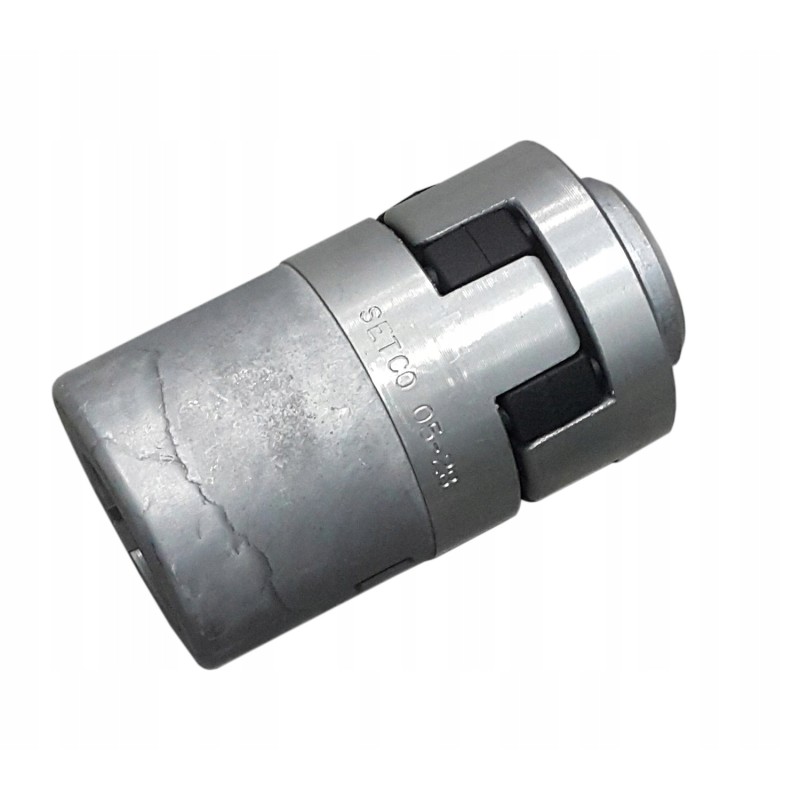

Engine pump clutch gr2 2 2 4 0 kw, 28mm shaft

COMPLETE WHEEL CLUTCH 2.2 - 4 kW GROUP 2 SKRAW-MET CODE: [1177] Italian production - SETCO Application: Used in hydraulic systems in agriculture, horticulture, forestry, construction and industry.

Connector designed to transfer the rotational force from the engine shaft to the shaft pumps.

For reducing and damping vibrations during operation of hydraulic systems, thanks to flexible connecting material: polyurethane.

FOR GROUP 2 PUMPS

FOR ELECTRIC MOTORS 2.2 - 4kW

Shaft 28mm

Motor size 100/112

Hub material : Aluminum

Aluminum clutch with flexible insert, internally mounted. bell connector, is an element connecting the electric motor (1 or 3 phase) with a hydraulic pump (European type).

SYMBOL: 0528-S05-052UNTechnical specification:Connector hardness (Shore scale): 80

Torque (nM) - 273

Max speed (rpm) - 10423

Cone - 1:8

Dimensions: A - 99.5mm

B - 55mm

C - 28mm

D - 8mm

E - 35mm
