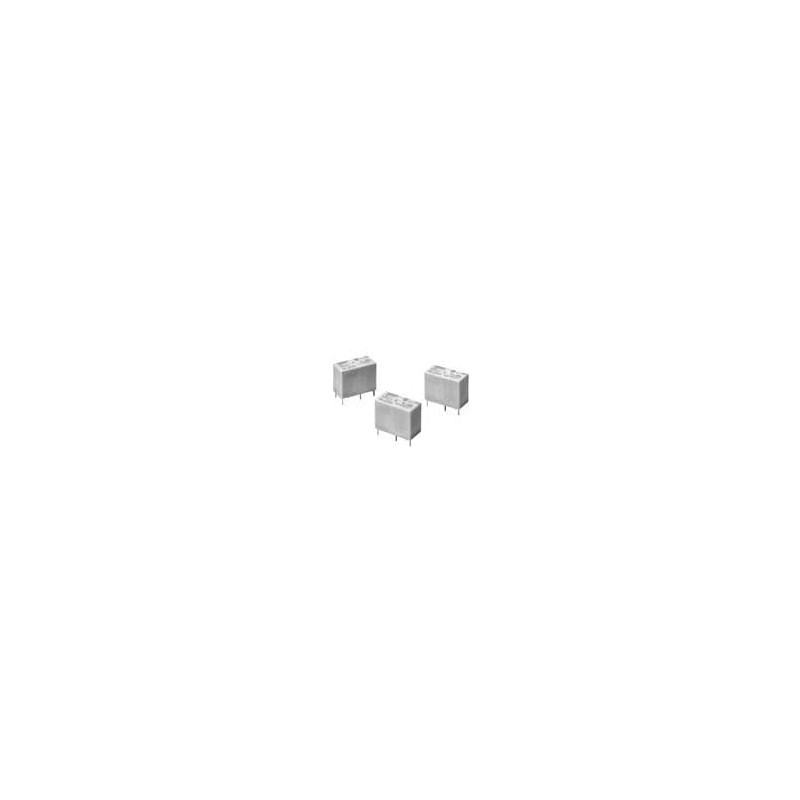

10 pcs : G5Q-1A-EL-HA-VH DC24 - General Purpose Relays SPST-NO (1a), 24VDC Thru-Hole
    • 10 pcs : G5Q-1A-EL-HA-VH DC24 - General Purpose Relays SPST-NO (1a), 24VDC Thru-Hole

    10 pcs : G5Q-1A-EL-HA-VH DC24 - General Purpose Relays SPST-NO (1a), 24VDC Thru-Hole

    10(electronicparts)653G5Q1AELHAVHDC24
    10 pcs : G5Q-1A-EL-HA-VH DC24 - General Purpose Relays SPST-NO (1a), 24VDC Thru-Hole
    £37.13
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    G5Q Miniature PCB Power Relays Omron Electronics G5Q Miniature PCB Power Relays are compact single-pole relays that provide excellent switching performance (10A) for a variety of loads. The small components provide an 8kV impulse withstand voltage between the coil and contacts and low coil power consumption in a Class F (UL1446) coil insulation system. The Omron Electronics -HA relays are ideal for home appliances according to IEC/EN60335-1 as they use fire-resistant materials in the base and case.
    Product Details
    10(electronicparts)653G5Q1AELHAVHDC24
    G5Q-1A-EL-HA-VH DC24
    10 Items

    Data sheet

    Manufacturer
    OMRON
    Width
    10.3 mm
    Height
    15.8 mm
    Length
    20.3 mm
    Series
    G5Q
    Mounting Style
    Through Hole
    Type
    Miniature
    Product Type
    General Purpose Relays
    Product Category
    General Purpose Relays
    RoHS
    Details
    Brand
    Omron Electronics
    Product
    Power Relays
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Relays
    Unit Weight
    6.500 g
    Part # Aliases
    G5Q-1A-EL-HA-VH DC24 BY G5Q1AELHAVHDC24 G5Q-1A-EL-HA-VH-DC24 OMZ G5Q1AELHAVHDC24BYOMZ
