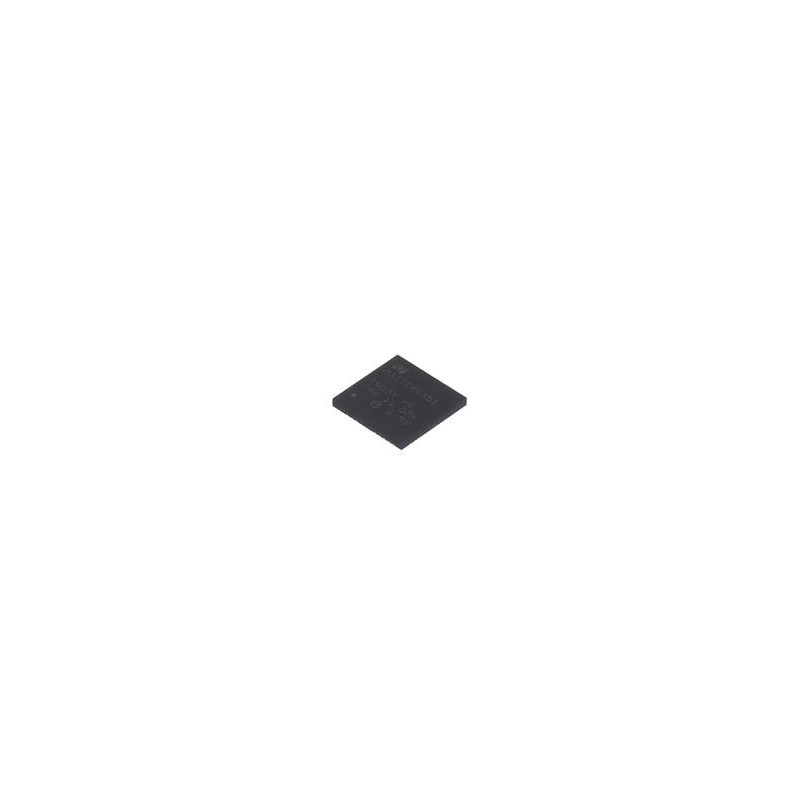

    1 pcs : MASTERGAN1 - Gate Drivers High-density power driver-high volt enhance mode GaN half bridge w/gate driver
    • 1 pcs : MASTERGAN1 - Gate Drivers High-density power driver-high volt enhance mode GaN half bridge w/gate driver

    1 pcs : MASTERGAN1 - Gate Drivers High-density power driver-high volt enhance mode GaN half bridge w/gate driver

    electronicparts-UK/M/511-MASTERGAN1
    £28.64
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MASTERGAN GaN Half-Bridge High Voltage Drivers STMicroelectronics MASTERGAN GaN Half-Bridge High Voltage Drivers implement a high power density power supply with the integration of both a gate driver and two enhancement-mode GaN transistors in a half-bridge configuration. The integrated power GaNs feature an RDS(ON) of 150mΩ and 650V drain-source breakdown voltage. The integrated bootstrap diode can quickly supply the high side of the embedded gate driver.
    Product Details
    STMicroelectronics
    electronicparts-UK/M/511-MASTERGAN1
    MASTERGAN1
    10 Items

    Data sheet

    Manufacturer
    STMicroelectronics
    Series
    MASTERGAN
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    High-Side, Low-Side
    Output Current
    10 A
    Product Type
    Gate Drivers
    Package/Case
    QFN-31
    Product Category
    Gate Drivers
    Packaging
    Tray
    RoHS
    Details
    Supply Voltage - Min
    4.75 V
    Supply Voltage - Max
    9.5 V
    Brand
    STMicroelectronics
    Moisture Sensitive
    Yes
    Product
    Half-Bridge Drivers
    Factory Pack Quantity Factory Pack Quantity
    1560
    Subcategory
    PMIC - Power Management ICs
    Unit Weight
    120 mg
    Operating Supply Current
    680 uA
