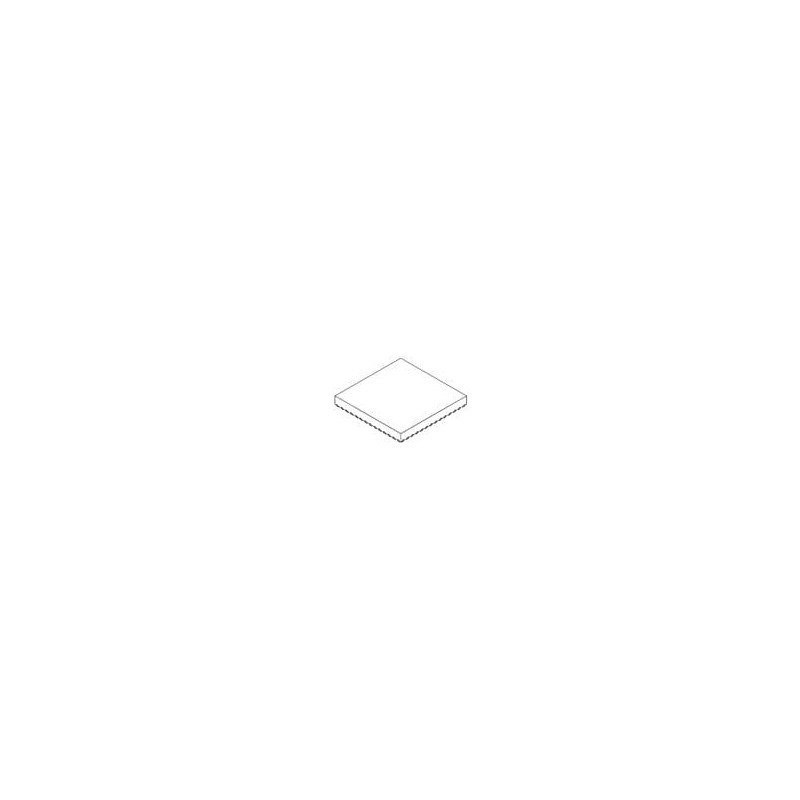

1 pcs : TB9083FTG(EL) - Gate Drivers 3-PHASE BLDC GATE DRV 4.4O/1.2O 3ch Safety Relay Gate DRV ASIL-D AEC-Q100/Q006 Wettable QFN
    • 1 pcs : TB9083FTG(EL) - Gate Drivers 3-PHASE BLDC GATE DRV 4.4O/1.2O 3ch Safety Relay Gate DRV ASIL-D AEC-Q100/Q006 Wettable QFN

    1 pcs : TB9083FTG(EL) - Gate Drivers 3-PHASE BLDC GATE DRV 4.4O/1.2O 3ch Safety Relay Gate DRV ASIL-D AEC-Q100/Q006 Wettable QFN

    electronicparts-UK/M/757-TB9083FTGEL
    TOSHIBA
    £20.74
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TB9083FTG 3-phase Brushless GATE-driver IC Toshiba TB9083FTG 3-phase Brushless GATE-driver IC is an AEC-Q100-qualified automotive GATE-driver for brushless motors. This pre-driver IC comes with an oscillator circuit, a motor current detector circuit, a charge pump, and an SPI communication circuit. The TB9083FTG contains a built-in safety relay and a three-phase pre-driver. This automotive GATE-driver offers numerous error detection features and is non-inverting. Typical applications include Electric Power Steering (EPS) and powered brakes.
    Product Details
    TOSHIBA
    electronicparts-UK/M/757-TB9083FTGEL
    TB9083FTG(EL)
    10 Items

    Data sheet

    Manufacturer
    TOSHIBA
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    High-Side, Low-Side
    Output Current
    20 mA
    Product Type
    Gate Drivers
    Package/Case
    VQFN-48
    Product Category
    Gate Drivers
    Packaging
    Cut Tape
    RoHS
    Details
    Supply Voltage - Min
    3 V
    Supply Voltage - Max
    5.5 V
    Brand
    Toshiba
    Moisture Sensitive
    Yes
    Product
    IGBT, MOSFET Gate Drivers
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    PMIC - Power Management ICs
    Qualification
    AEC-Q100
