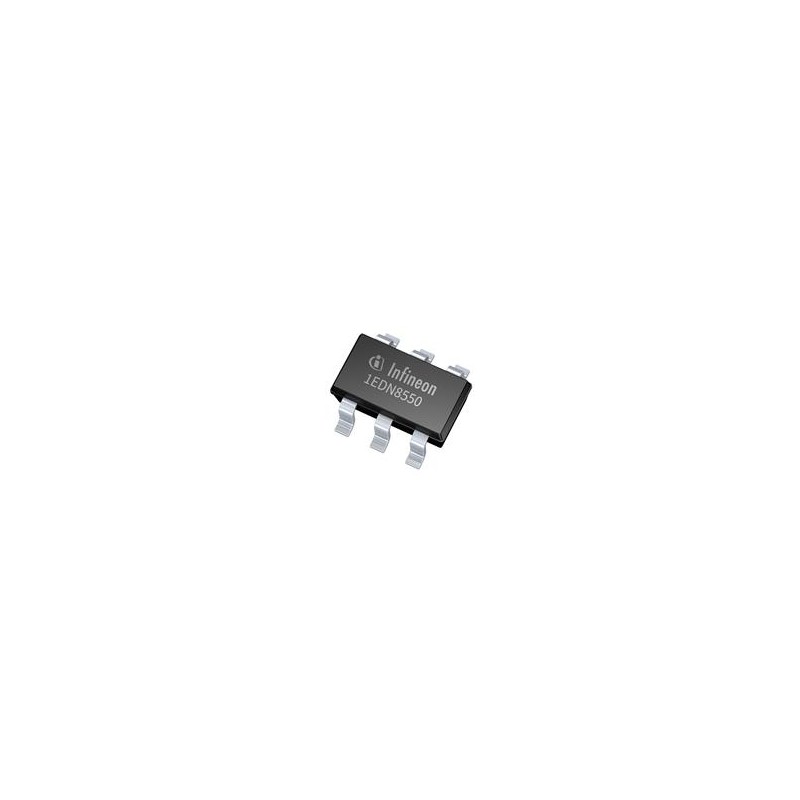

1 pcs : 1EDN8550BXTSA1 - Gate Drivers DRIVER IC
    • 1 pcs : 1EDN8550BXTSA1 - Gate Drivers DRIVER IC

    1 pcs : 1EDN8550BXTSA1 - Gate Drivers DRIVER IC

    Allparts-UK/M/726-1EDN8550BXTSA1
    £8.98
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    1EDNx550 TDI EiceDRIVER™ Gate Driver ICs Infineon 1EDNx550 EiceDRIVER™ Gate Driver ICs are single-channel, non-isolated gate-drive ICs with Truly Differential Inputs (TDI) to prevent false triggering of power MOSFETs. The logic driver state is controlled by the voltage difference between the two inputs and is completely independent of the driver’s reference (ground) potential. This design eliminates the risk of incorrect triggering and provides a significant benefit to applications with voltage differences between the driver and controller ground.
    Product Details
    Allparts-UK/M/726-1EDN8550BXTSA1
    1EDN8550BXTSA1
    10 Items

    Data sheet

    Manufacturer
    Infineon
    Series
    1EDN
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Half-Bridge
    Output Current
    8 A
    Product Type
    Gate Drivers
    Package/Case
    SOT-23-6
    Product Category
    Gate Drivers
    Packaging
    Cut Tape
    RoHS
    Details
    Supply Voltage - Min
    4.5 V
    Supply Voltage - Max
    20 V
    Brand
    Infineon Technologies
    Product
    MOSFET Gate Drivers
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    PMIC - Power Management ICs
    Part # Aliases
    1EDN8550B SP001690388
    Operating Supply Current
    1.06 mA
