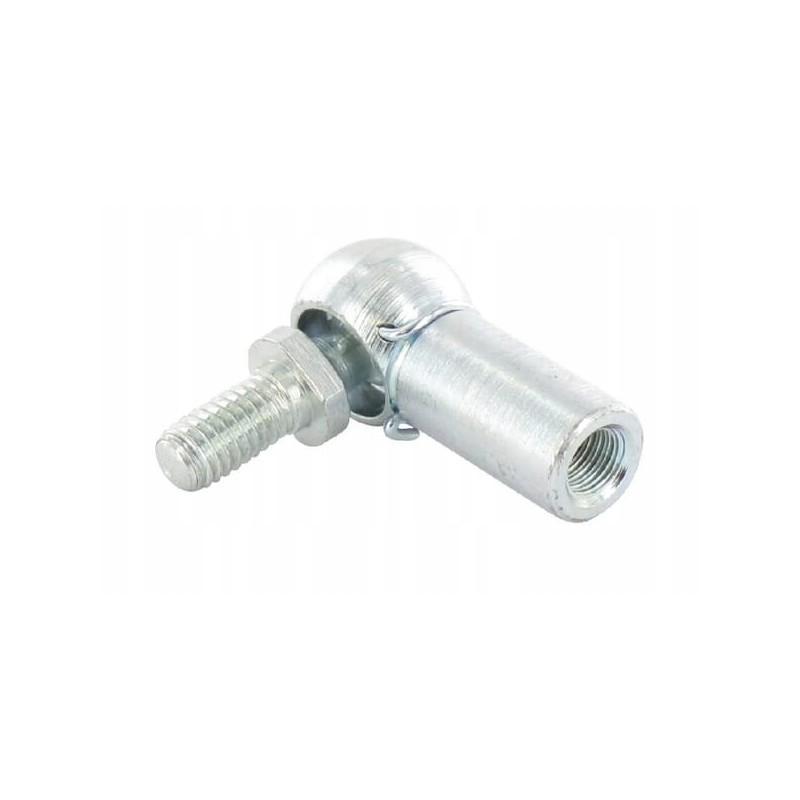

Gas spring tip Parameters
Part number: CA98510
Unit: piece
Manufacturer: Unbranded
Features: - Right-hand (R) and left-hand (L) thread
Consisting of: - With locking ring
Working length: 25 mm
Taper length: 13 mm
Total length : 25 mm
Thread diameter - short side [A]: M6
Thread length - short side [C]: 13 mm
Thread type - short side: Metric
Thread direction - short side: Right
Thread diameter - rod side [G ]: M6
Thread type - rod side: Metric
Thread direction - rod side: Right
Wrench size [F]: 8 mm
Joint ball diameter [E]: 10 mm
Material: Zinc
Dimension from the top of the tip to the axis of the joint ball [B]
11mm
