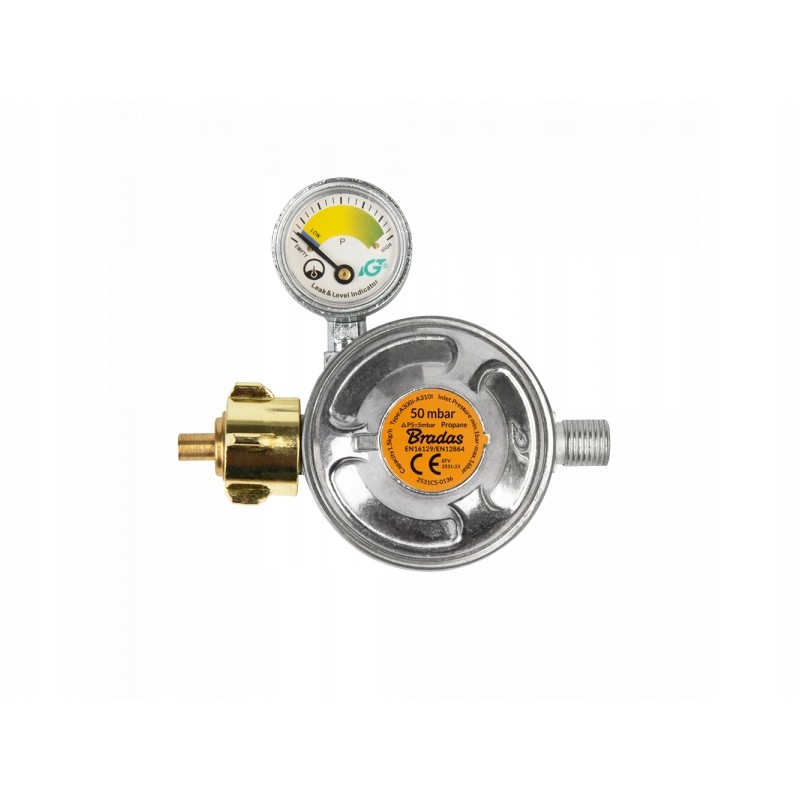

50 mbar gas reducer with pressure gauge for 11 kg cylinders

50 mbar gas reducer with pressure gauge for 11 kg cylinder Catalog number: 720545

IGT A310IE reducer with pressure gauge

Catalog number: 720545

Propane-butane gas reducer with safety valve and pressure gauge.

Used to power gas devices from 11 kg cylinders Technical data:

efficiency: 1.5 kg/h

outlet pressure 50 mbar

input thread: W21.8'LH (bullet thread 11 kg)

output thread: 1/4' LH

Equipped with a gas level indicator in the cylinder and a safety valve in the form of an outflow limiter, which significantly limits uncontrolled gas outflow from the reducer if the gas pipe connecting the reducer with the device is damaged. The pressure gauge shows 3 levels of gas in the cylinder:

blue color - gas cylinder is empty - no gas

yellow color - you should plan to replace the cylinder soon

green color - proper gas pressure in the cylinder (between 2-16 bar)

NOTE: The operation of the indicator is based on the measurement of the gas vapor pressure in the cylinder, while this pressure depends on the gas temperature and the proportion of the butane-propane mixture in the cylinder, therefore the indications of this indicator should be treated as approximate.

We have hoses of various lengths intended for this reducer:

Gas pressure reducer with flow limiter and manometer indicating the gas level in the cylinder
