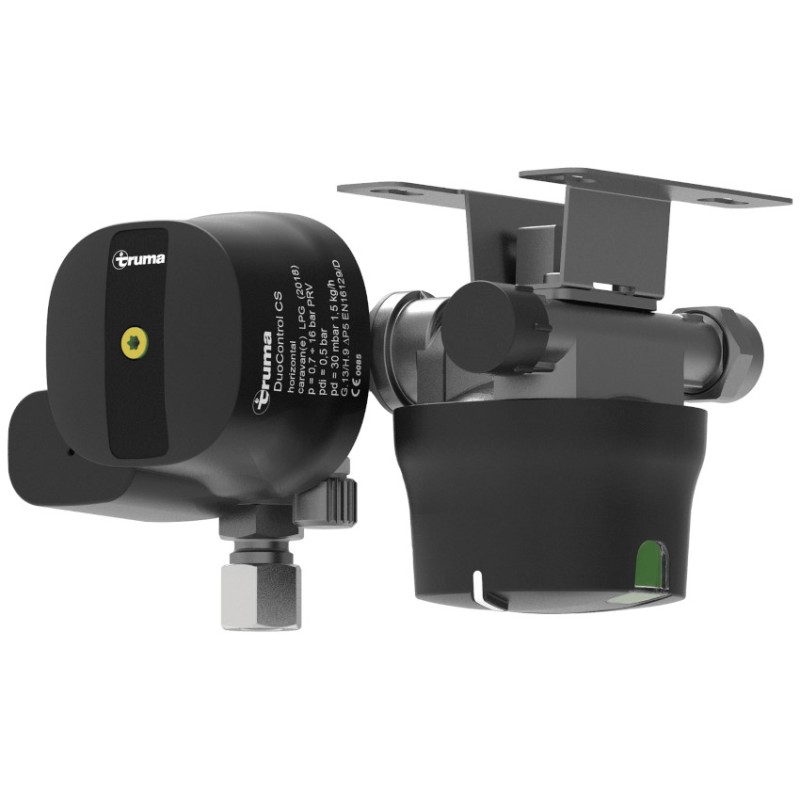

Truma duocontrol cs horizontal gas reducer

TRUMA DUOCONTROL CS horizontal gas regulator (horizontal)Gas pressure reducer with a collision sensor for operation on two cylinders.

You can connect two gas cylinders in a camper, camper or caravan to the new generation of Truma DuoControl CS gas pressure regulators. The system automatically switches to the second gas cylinder when the working cylinder is empty. The integrated crash sensor allows the vehicle to be safely heated while driving. Prevents gas from escaping in the event of an accident.

Product features:

Indicates which cylinder it is taking gas from.

Automatically switches from an empty to a full gas cylinder.

Easily detects and resets a triggered collision sensor (in the event of an accident, it immediately interrupts the flow gas).

For safe mobile and stationary operation.

Supplies appropriate pressure to all gas-powered devices in the vehicle.

Low weight.

Quick installation.

Technical data:

Energy sources: Propane/butane

Pressure inlet: 0.7 – 16 bar

Outlet pressure: 30 mbar

Regulator output (performance): max. 1.5 kg/h

Regulator input: external thread M20 x 1.5 (G. 13)

Regulator output: 8 or 10mm olive screw connector (H. 9)

Crash sensor trigger value: 4.0g +/- 1.0g

Weight: approx. 900 gr

Dimensions (L x W x H): 84 x 95 x 103 mm (vertical reducer) 104 x 158 x 116 mm (horizontal reducer)
