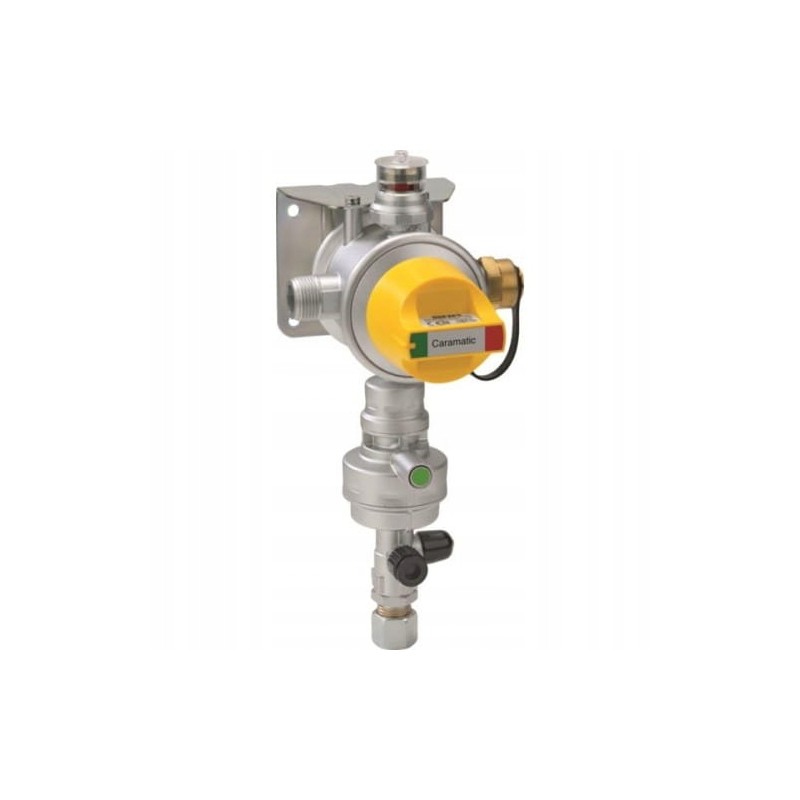

Gas reducer for double-cylinder installations CS 1 5kg gok

GAS REDUCER ASSEMBLY FOR DOUBLE-BOTTLE INSTALLATIONS CS 1.5 KG/H 50MBAR VERTICAL

Caramatic DriveTwo CS PS 16 bar - reducer set with protection and automatic switch for operating double-cylinder systems in trailers and campers while driving.

Set elements:

automatic switch,

low pressure reducer with pressure relief valve (PRV),

mechanical collision sensor,

button,

reserve ratio,

non-return valve,

control set and wall mount

Advantages and equipment:

heating while driving using a mechanical collision sensor which, in the event of an accident, blocks the gas flow by means of a delay of 3.5 g +/- 0.5 g directly acting on the trigger element; for an average vehicle size, this corresponds to a collision speed of approx. 15 to 20 km/h with a permanent obstacle

can be used throughout Europe thanks to the use of country-specific high pressure hoses (not included in the scope of delivery)

cylinder replacement is possible without interrupting work

non-return valve preventing the flow of gas flow when replacing the cylinder

a test kit that allows you to check the tightness of the liquid gas installation without dismantling the pressure reducer

version with a connection at the output. (RVS) 10 is standardly equipped with an adapter for connection to 8 mm pipes

Technical data:

output pressure 50 mbar

efficiency 1.5 kg/h

vertical installation
