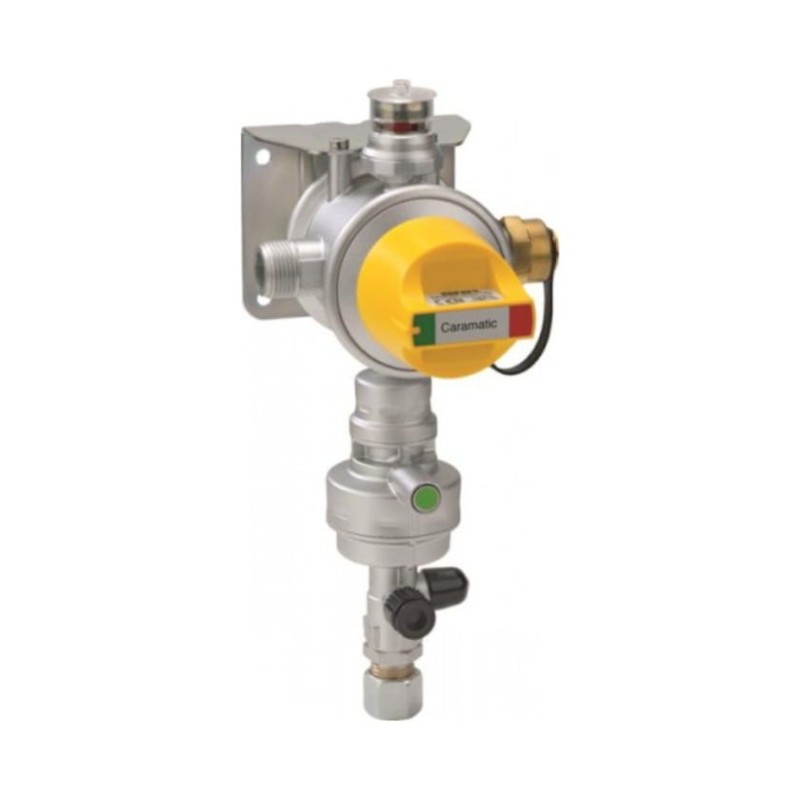

Gok caramatic drivetwo cs 1 gas reducer 5 kg h

Caramatic DriveTwo CS 1.5 kg/h, 30mbar verticalCaramatic DriveTwo CS PS 16 bar - reducer set with protection and automatic switch for operating double-cylinder systems in trailers and campers while driving.

Kit Components: Automatic Switch, Low Pressure Regulator with Purge Safety Valve (PRV), Mechanical Crash Sensor, Push Button, Reserve Indicator, Check Valve, Control Kit and Wall Bracket

Advantages and equipment:

- heating while driving using a mechanical collision sensor which, in the event of an accident, blocks the gas flow by means of a delay of 3.5 g +/- 0.5 g acting directly on the trigger element; for an average vehicle size, this corresponds to a collision speed of approx. 15 up to 20 km/h with a permanent obstacle

- can be used throughout Europe thanks to the use of country-specific high-pressure hoses (not included in the scope of delivery)

- cylinder replacement is possible without interrupting work

- non-return valve preventing the flow of gas when replacing the cylinder

- a test kit enabling checking the tightness of the liquid gas installation without dismantling the pressure reducer

- version with a connection at the SZP outlet. (RVS) 10 is standardly equipped with an adapter for connection to 8 mm pipes

Technical data:

- output pressure 30 mbar

- efficiency 1.5 kg/h

- vertical installation

Admission:

- EC - type examination according to GAR
