Gok caramatic drivetwo cs 1 gas reducer 5 kg h

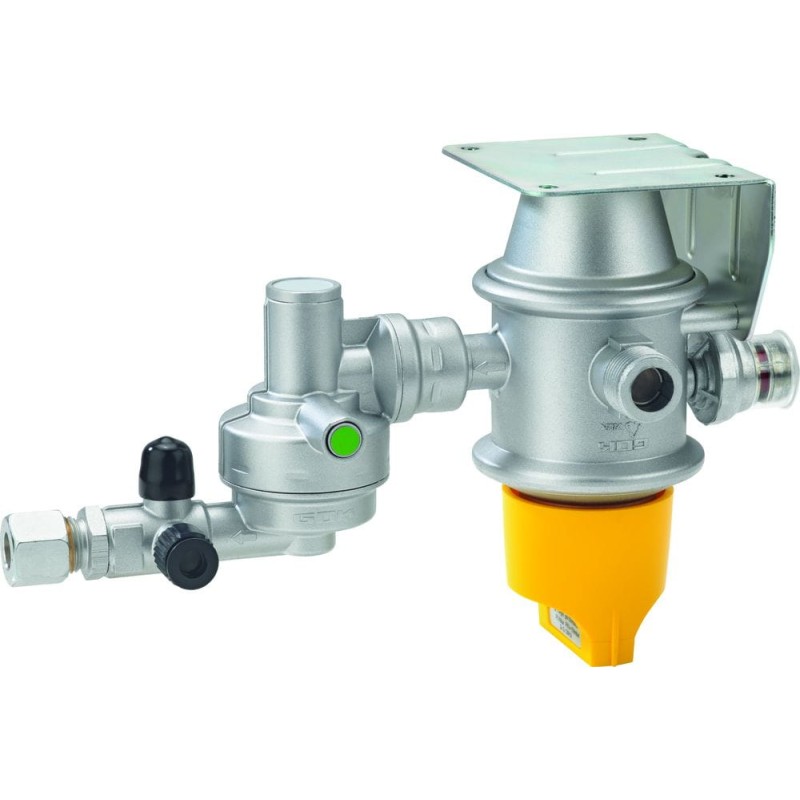

Caramatic DriveTwo - automatic switch with a horizontal reducerCaramatic DriveTwo PS 16 bar is a set of a reducer with protection and an automatic switch for operating double-cylinder systems in trailers and campers while driving.

The device is intended for installation in a horizontal position.

Technical parameters of the gas reducer:

efficiency 1.5 kg/h

operating pressure 30 mbar or 50 mbar (must be selected)

mechanical impact sensor

connection M20 external x 1.5 x RVS 8

Equipment elements:

automatic feed direction switch between two cylinders

low pressure reducer for 30 mbar or 50 mbar

pressure relief valve (PRV) in the gas regulator

mechanical crash sensor Crash-Sensor

operating button

reserve ratio

non-return valve

control connection

wall holder

Advantages and equipment:

possibility of heating while driving using a mechanical Crash-Sensor,

automatic switching to the reserve tank after the working cylinder is empty,

possibility of replacing the cylinder without having to interrupt work thanks to the use of a non-return valve that prevents gas outflow after disconnecting the cylinder,

uniform gas supply thanks to optimal use of gas from the cylinder,

indication of the cylinder from which the gas is taken,

can be used throughout Europe thanks to the use of country-specific high pressure hoses (not included in the set),

test connection enabling checking the tightness of the LPG installation without dismantling the pressure reducer.

Declaration of Conformity

EU - type examination in accordance with the regulation on appliances burning gaseous fuels.
