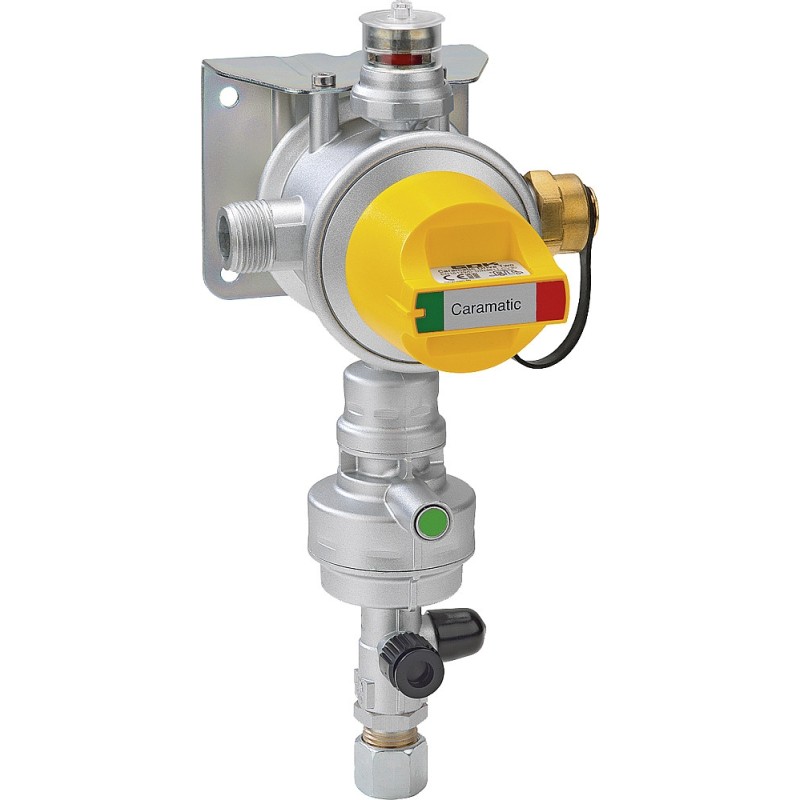

Gas reducer for double-cylinder installations gok cs 1 5kg

Safe gas pressure regulation system with automatic switchover valve for operating two-cylinder systems in caravans and motorhomes while driving, for connecting gas cylinders via a high-pressure hose, for regulating the pressure to the nominal pressure of the gas device.

Heating while driving using an integrated mechanical impact sensor, which, in the event of an accident, cuts off the gas supply with a delay of 3.5 g ± 0.5 g, acting directly on the trigger element. This corresponds to a collision speed of approximately 20 km/h on a fixed obstacle. Automatic switching to the reserve gas cylinder as soon as the service cylinder is empty. Changing the bottle is possible without interrupting work.

Gas backflow protection: gas flow cannot escape when changing the cylinder. Uniform gas supply thanks to optimal use of the contents of the gas cylinder. Indication of which cylinder the gas comes from.

Application throughout Europe thanks to the use of country-specific high-pressure hoses - Caramatic ConnectDrive (not included in the scope of delivery).

Testing device for checking the tightness of liquefied gas installations without dismantling the pressure monitoring device.

The version with RVS 10/8 outlet connection is standardly equipped with an adapter for connection to 8 mm pipes.

TECHNICAL DATA:

Automatic switchover valve

Low pressure reducer with PRV safety valve

Mechanical impact sensor

Operation button

Operation and reserve indicator

Gas check valve

Control device

Caramatic DriveTwo wall mount, vertical installation , 2 x AG M20 x 1.5 x RVS 10 / 8 30 mbar 1.5 kg/h
