Campervan gasbank cylinder refueling kit

The subject of the sale is: An assembly kit for filling 11 kg cylinders in campers in Poland and countries where the DISCH system is in force. The refueling valve is installed in the area where the cylinder is stored. The refueling valve is equipped with a non-return valve. When you disconnect the gun, the gas will not flow back.

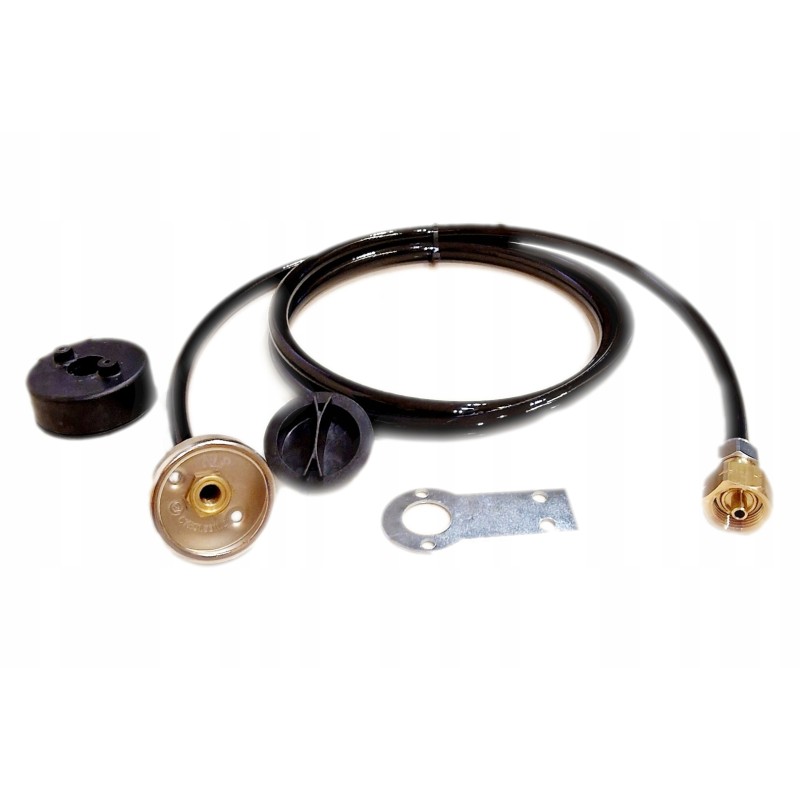

The set is sold as shown in the photo. In this way, you can individually select the length of the gas pipe.

The set includes:

Set refueling valve

Complete cap for the cylinder

Connector for the PVC pipe

PVC gas pipe (2 m)

Gas filler support

The set can be a refueling valve from another manufacturer may be included (depending on market availability)

VERY IMPORTANT!!! The connection between the cylinder and the hose must be tight. Propane-butane gas is characterized by very high thermal expansion. This means that a small increase in ambient temperature causes a large increase in the volume of the gas. Therefore, it is important not to refuel the cylinder. We can pour no more than 19 liters of gas into a completely empty 11 kg cylinder. It is advisable to use a scale when filling the cylinder. The nameplate shows the gross weight (cylinder weight plus 11 kg of gas). When pouring gas, this weight cannot be exceeded. How to connect the connector to the cable? Put a compression nut on the cable and then a ring as shown in the photo. Then we push the connector into the cable and screw the whole thing together. This way we will achieve a tight connection.

How to connect the filler pipe with the pipe. Connect all the elements in the order shown in the photo. First, insert the pressure nut and then the sealing barrel onto the Ø 8 pipe. We put everything into the valve. Finally, we screw it together and obtain a tight connection. I wish you wonderful journeys and lots of experiences. Widths!!!!
