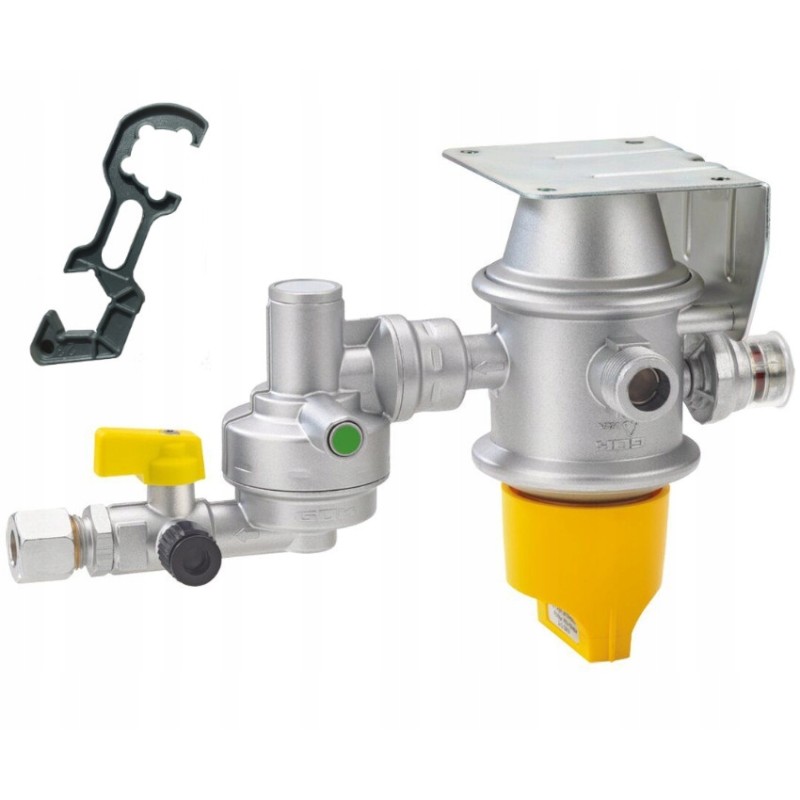

Gok Drivetwo gas reducer 30mbar horizontal cs

Caramatic DriveTwo CSW 1.5 kg/h, 30 mbar, horizontal Protected reducer unit with automatic switch for operating double-cylinder systems in trailers and motorhomes while driving, for connection to gas cylinders via a high-pressure hose, for reducing the pressure to the nominal pressure gas appliance.

Kit components: automatic switch, low pressure regulator with pressure relief valve (PRV), mechanical impact sensor, operating button, reserve indicator, non-return valve, control kit and wall bracket, plastic key.

Advantages and equipment

Driving heating using a mechanical impact sensor which, in the event of an accident, blocks the gas flow by means of a delay of 3.5 g ± 0.5 g directly acting on the trigger element; for an average vehicle weight this corresponds to a collision speed of approx. 15 to 20 km/ h with a fixed obstacle.

Automatic switching to the gas cylinder on the reserve side after the cylinder on the working side is empty.

Replacing the cylinder is possible without interrupting work.

With a non-return valve to prevent gas leakage when replacing the cylinder.

Uniform gas supply thanks to optimal use of gas from the cylinder.

Indication of which cylinder the gas is taken from.

Can be used throughout Europe thanks to the use of country-specific high pressure hoses - Caramatic ConnectDrive (not included).

A test kit that allows you to check the tightness of the liquid gas installation without dismantling the pressure reducer.

Version with a connection at the outlet. (RVS) 10 / 8 is standardly equipped with an adapter for connection to 8 mm pipes.

Adapted to the Eis-Ex connection.

Conformity

EC - type testing in accordance with the Regulation on appliances burning gaseous fuels (GAR)

Caramatic Drive Two.

Capacity: 1.5 kg/h

Output pressure: 30 mbar

Maximum allowable pressure: PS 16 bar

Connections:

vertical installation,

2 x M20 external x 1.5 x flat (RVS) 10/8

Dimensions:

Width 235mm

Height 145mm

Depth 105mm

Net weight 1.5kg
