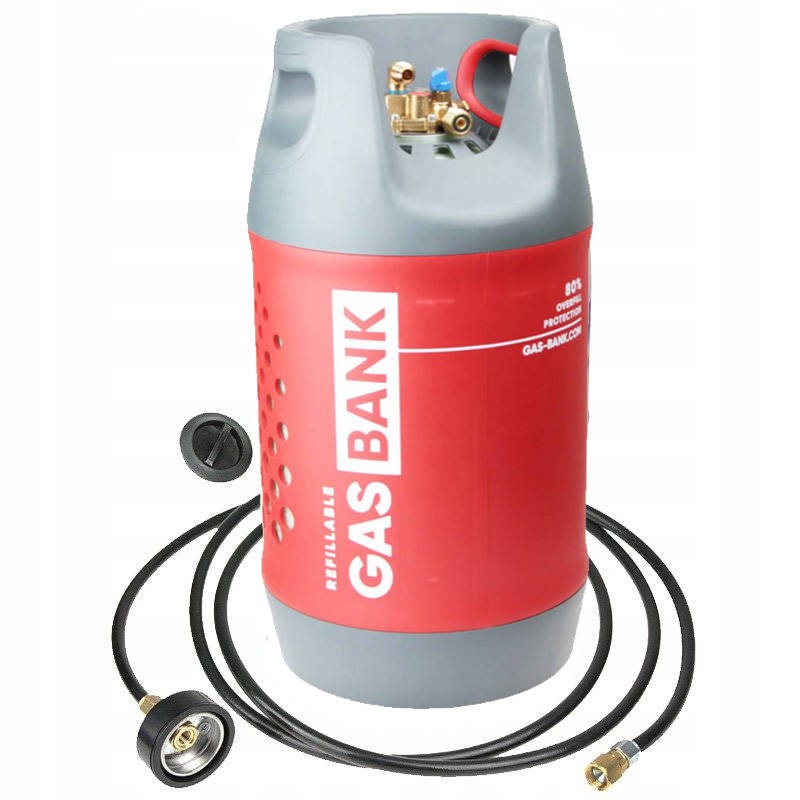

Gasbank multi 11 kg cylinder filling set

GasBank – Ultra-light composite LPG gas cylinder with an 80% filling limit valve (OPD). Gas cylinders that can be filled at LPG stations. Perfect for barbecuing, camping, cooking, heating in the home, caravan, motorhome, boat, industrial burners and or for any application anywhere a standard LPG cylinder can be used.

The cylinder is made of lightweight composite material to ensure durability and high protection requirements.

Safe filling of LPG throughout Europe The cylinder is equipped with a certified gas multivalve with a separate input and output

Safety functions The GASBANK valve, unlike valves in standard LPG cylinders, has a unique OPD system, enabling safe filling at any LPG station.

Automatic OPD (overfill protection) valve that automatically stops filling when the gas level reaches 80%.

What is the difference between SINGLE and MULTI cylinders?

MULTI cylinders have a separate gas input with a non-return valve and a separate output to the reducer, they are also equipped with a level indicator, a manual shut-off valve, a separate input and output. SINGLE cylinders are equipped with one connection that is both the input and output of gas from the cylinder. Both types of cylinders are equipped with safety relief valves.

How does the MULTI cylinder work?

MULTI cylinders have a separate input and output, so they can be filled without disconnecting from the installation and connected to each other to increase the total capacity.

How to fill a MULTI cylinder?

MULTI cylinders can be filled via a remote refueling valve or adapters screwed directly onto the cylinder

Do I have to disconnect the output when refilling gas in Gasbank MULTI?

There is no need to disconnect the MULTI cylinder from the installation during filling, it is recommended to close the outlet valve (blue), but it is not necessary.

Remote refueling valve M10 - 1.5m Main advantages:

M10 thread

Cable length 1.5 m

Universal type remote refueling valve with M10 thread.

Cable length 1.5 meters

Main advantages of the MULTI 11 kg cylinder:

Safe self-filling of LPG throughout Europe

Fill limiting valve up to 80% (OPD)

Ultra-light cylinders made of composite

TUV certified

Modern appearance without rust

Accessories and European adapters

Height (mm): 571

Diameter: 310 ± 3 mm

Net weight of empty cylinder: 5.65±0.2 Kg

Capacity - LPG: 19.5 L

Capacity - Propane: 11 kg

Valve type: MULTI valve
