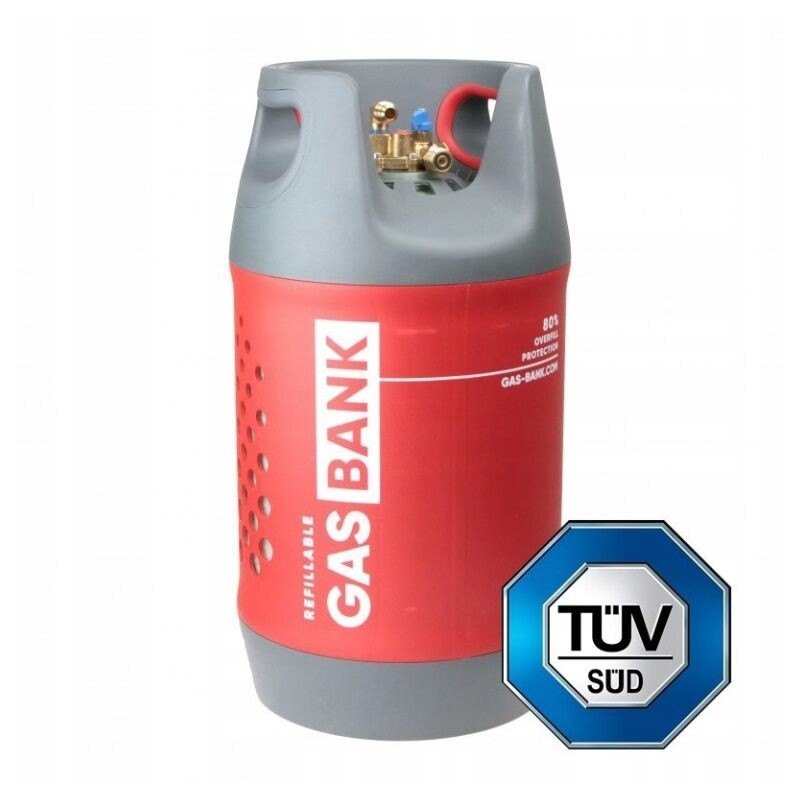

Gasbank multi 11kg composite cylinder

GasBank MULTI 11kg - LPG gas cylinder

LPG gas cylinder with multi-valve for self-filling with cut-off valve at 80% filling - OPD

GasBank - Ultra-light composite LPG gas cylinder with a valve limiting the filling to 80% (OPD)

Gas cylinders with the possibility of filling at 80% LPG stations. Perfect for grilling, camping, cooking, heating in your home, caravan, motorhome, boat, industrial burner and/or any application anywhere a standard LPG cylinder can be used.

The cylinder is made of a lightweight composite material for durability and high protection requirements.

Safe filling of LPG throughout Europe

The cylinder is equipped with a certified gas multivalve with separate input and output

Safety functions

The GASBANK valve, unlike valves in standard LPG cylinders, has a unique OPD system enabling safe filling on any LPG station.

The automatic OPD valve (overfill protection) automatically stops filling when the gas level reaches 80%.

What is the difference between SINGLE and MULTI cylinders?

MULTI cylinders have a separate gas input with a non-return valve and a separate outlet to the reducer, they are also equipped with a level indicator, manual shut-off valve, separate input and output. SINGLE cylinders are equipped with one connection that is both the input and output of gas from the cylinder. Both types of cylinders are equipped with safety relief valves.

How does a MULTI cylinder work?

MULTI cylinders have a separate input and output, so they can be filled without disconnecting from the installation and connected to each other to increase the total capacity.

How to fill a MULTI cylinder?

MULTI cylinders can be filled via a remote refueling valve or adapters screwed directly onto the cylinder

Do I have to disconnect the output of Gasbank MULTI when refilling gas?

It is not necessary to disconnect the MULTI cylinder from the installation during filling, it is recommended to close the output valve (blue) but not this is necessary.

Technical Specification

MULTI valve type

Cylinder height (mm) 571

Cylinder diameter (mm) 310

Weight of empty cylinder (kg) 5.65

Capacity - LPG (liters) 19.5

Capacity - Propane (kg) 11

Tank water capacity (L) 24.4

Check valve

Manual shut-off valve

Gas flow limit valve (SBS)

Pressure safety valve (PRV)

Automatic shut-off valve at 80% level - OPD

DIN outlet (G12 KLF) (W21.8 x 1/14 lh)

JIC 3/4UNF male thread input

LPG level indicator

PET material
