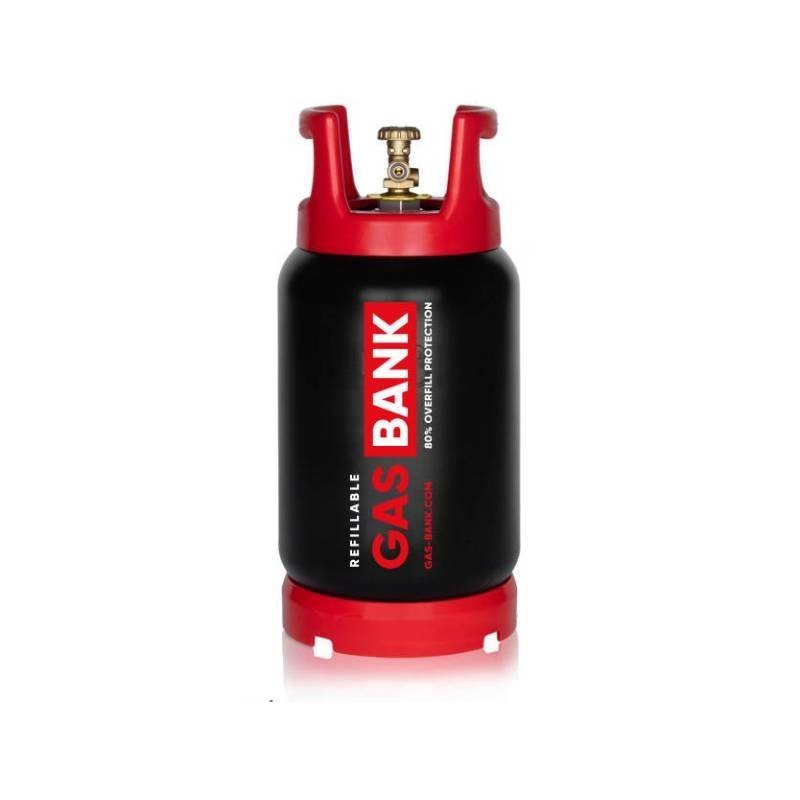

Gasbank single slim 5kg kewlar with opd 80 valve

SINGLE GASBANK CYLINDER 5 kg A very light LPG gas cylinder equipped with a special valve (OPD) that turns off the possibility of filling the cylinder when the level reaches 80%. Due to the fact that it is made of Kevlar, it weighs little, so it is perfect for holiday trips with a camper or trailer and ensures durability and meets high protection requirements. GasBank Single SLIM has a smaller diameter than a standard LPG gas tank. A gas cylinder allows us to refuel gas at LPG stations. Perfect for grilling, camping, cooking, heating at home, caravan, camper or boat, also used for industrial burners, for any application wherever a standard LPG cylinder can be used. It has handy handles for easy transport.

The technology of this tank uses ultra-strong Aramid fibers (also known under the trade names Kevlar or Twaron). The choice of this material instead of fiberglass is supported by greater efficiency and durability. In terms of specific strength, it is even more durable than carbon fiber, and 10 times more glass fiber is needed to obtain the same strength. Not only durability, but also the processing of aramid fibers at high speeds is easier. Last but not least, the fatigue life of Aramid compared to glass fibers is much better. It's not only about the type of fibers, but also about the way they are wound onto the liners. And herein lies one of the most spectacular innovations, the fibers are dry processed and stay in place by being wound in clean patterns. Thanks to this, the entire cylinder withstands huge deformations under high impact loads.

The cylinder is equipped with the most popular inlet-outlet valve in Europe G12 with a rubber gasket, also known as KLF - Kleinflashe (G.12). The valve thread is 21.8mm x 1/14 LH. This type of valve is used in countries such as: Austria, Belgium, Bosnia and Herzegovina, Croatia, Czech Republic, Denmark, Finland, France, Germany, Hungary, Iceland, Ireland, Luxembourg, Netherlands, Norway, Poland, Russia, Serbia, Slovenia, Spain, Switzerland, Great Britain.

CHARACTERISTIC FEATURES:Safe gas multivalve

Weight: 4.1 kg

Inlet-outlet valve

Fill limit valve up to 80% (OPD)

TUV certified

TECHNICAL PARAMETERS:Brand: GASBANK

Symbol: GB-KEV-5

Material: KEWLAR

LPG level indicator: no

Input: 25E ISO 11363-1

Output: DIN (G12 KLF) (W21.8 x 1/14 lh)

Manual shut-off valve: yes

Return valve: yes

Capacity - Propane: 5 kg

Capacity - LPG: 9.76 l

Weight of empty cylinder: 4.1 kg

Cylinder diameter: 230 mm

Cylinder height: 495 mm

Valve type: SINGLE
